Tesoro Neo X2 Step Through Electric Hybrid Bike

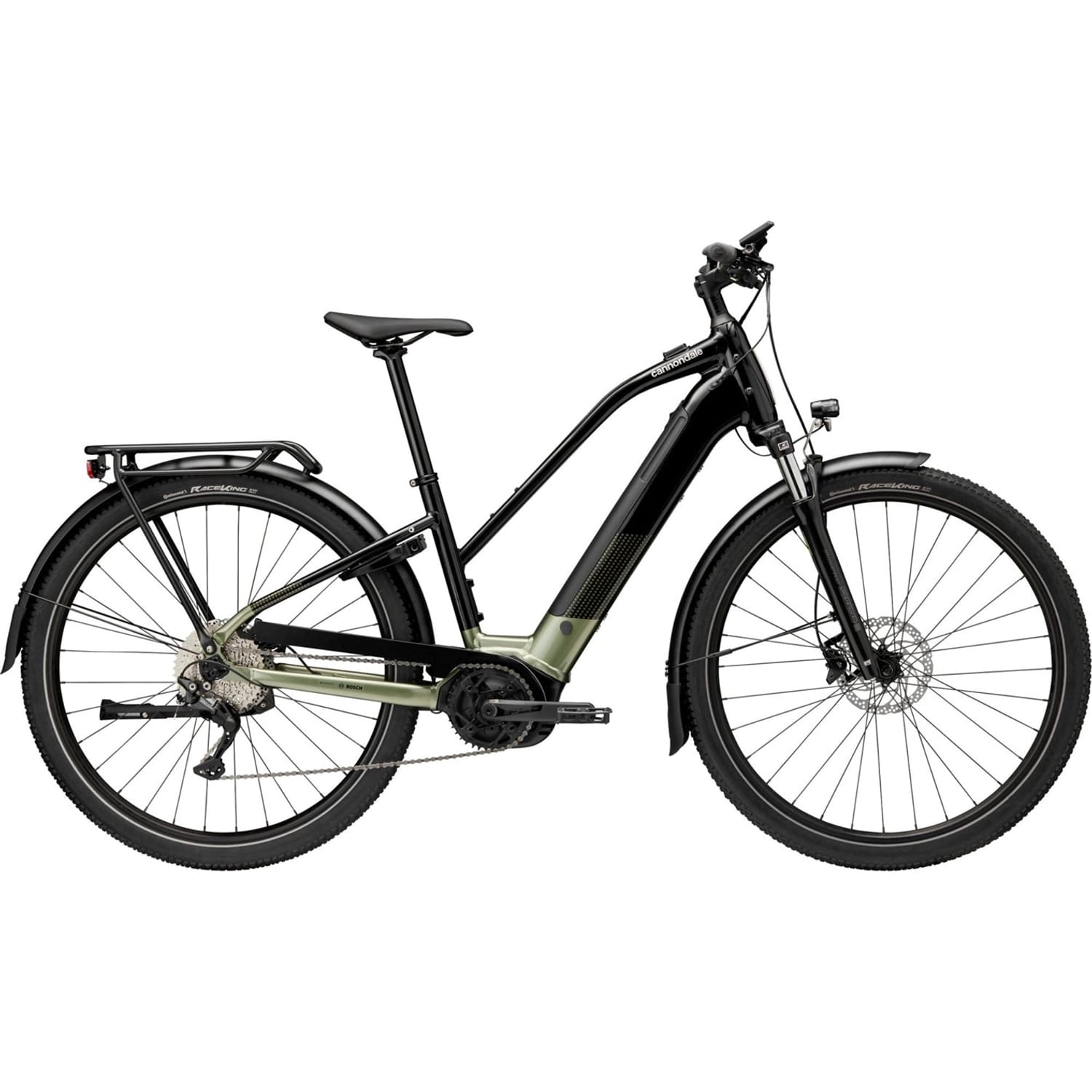

Cannondale Tesoro Neo X2 Step Through Electric Hybrid Bike in Green

£1,899.00 £3,750.00 Save £1,851.00 (49%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

Product Description
Product Code: FR2857804
About the Tesoro Neo X2 StepThru

Free Yourself - Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.

Where it thrives - City streets and adventurous backroads

What it's built for - Commuting, touring, exploring.

Highlights
> Step-thru SmartForm C2 Alloy frame / bump-smoothing 63mm travel suspension fork > Shimano Deore 10-speed shifting / hydraulic disc brakes > Bosch Smart System - Performance Line 250W drive-unit / 625Wh battery / Range: up to 140km

Key Features
- Off-road ready - With its stout 63mm travel fork, rattle-free fenders, high-capacity rear rack (Racktime 25kg compatible), bright front and rear lights, wide handlebars and low gearing – the new Tesoro Neo X lives to load up and hit the road, any road, anywhere.
- Urban steady - Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro Neo X so capable off-road translate into a comfortable, confident experience on-road.
- Fast and Fun - The comfortably sportive riding position and impressively precise handling make riding this e-bike a blast, whether you’re dicing it up with city traffic, or carving turns through the mountains, on-road or off.
Specifications

Frameset
- Frame: SmartForm C2 Alloy, step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
- Fork: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Wheels
- Rims: Alloy, double wall, 32 hole, 25mm internal width, disc-specific
- Tyres: Continental Race King, 27.5x2.20 (SM), 29x2.20 (MD-LG)
Drivetrain
- Crankset: FSA for Bosch
- Shifters: Shimano Deore M4100, 10-speed
- Rear Derailleur: Shimano Deore M4120, 10-speed
- Chain: Shimano HG54, 10-speed
- Cassette: Shimano Deore M4100, 11-42, 10-speed
Components
- Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8°degree sweep, 4degree rise, 740mm
- Stem: Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
- Grips: Cannondale Ergo Fitness Dual Density, Lock-on
- Brakes: Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
- Saddle: Selle Royal Vivo Active Ergo with reflective accents
- Seatpost: Cannondale 4, 6061 Alloy, 31.6
- Extras: Lights
E-System
- Motor: Bosch Performance Line, Smart System, 25km/h
- Battery: Bosch PowerTube, 625Wh
- Controller: Bosch Intuvia w/ LED remote
Tesoro Neo Sizing

S M L
Rider Height (cm) 149 - 170 165 - 180 175 - 190
Rider Height (in) 4'11 - 5'7 5'5 - 5'11 5'9 - 6'3

	S	M	L
Rider Height (cm)	149 - 170	165 - 180	175 - 190
Rider Height (in)	4'11 - 5'7	5'5 - 5'11	5'9 - 6'3
