Emonda Sl 5 2024 Road Bike

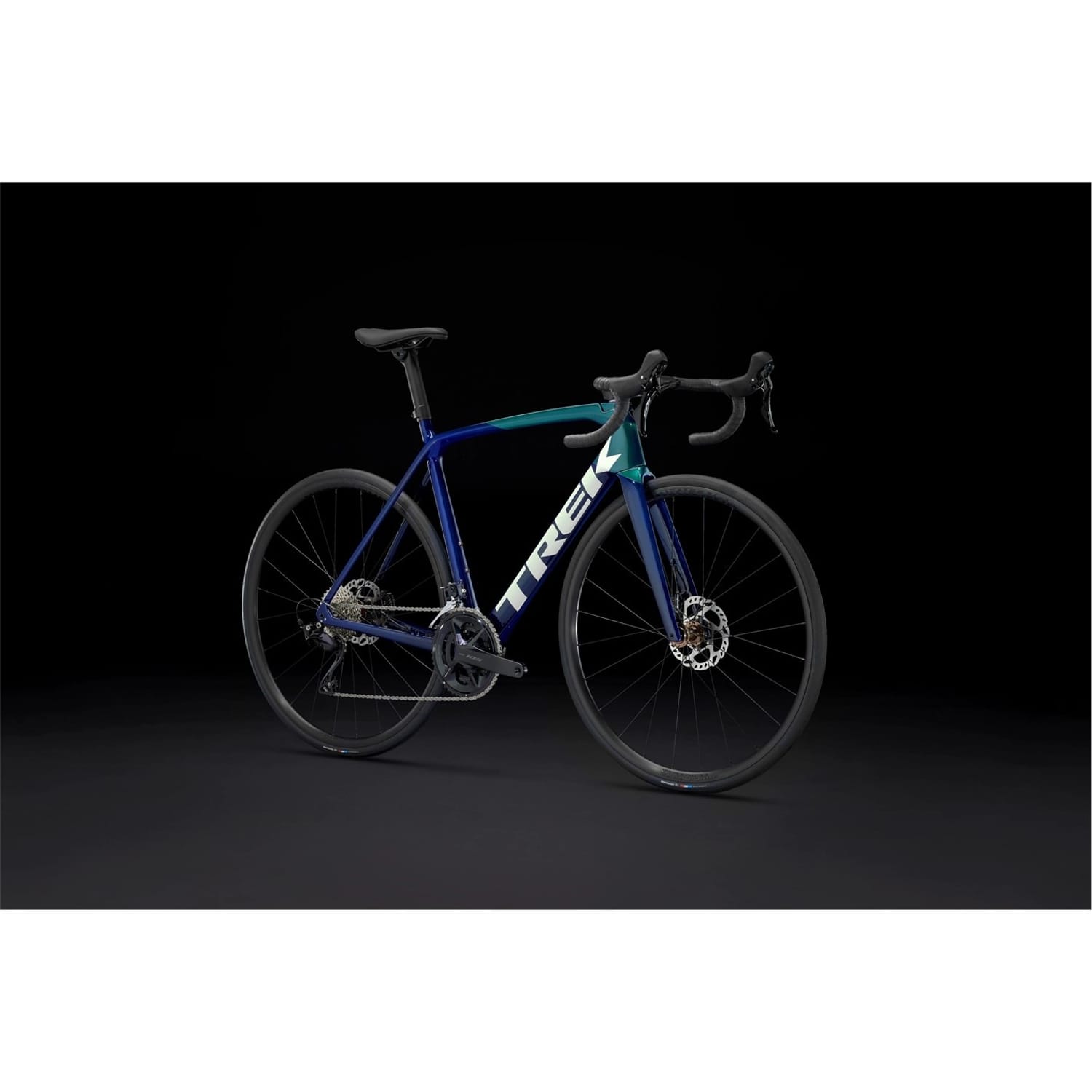

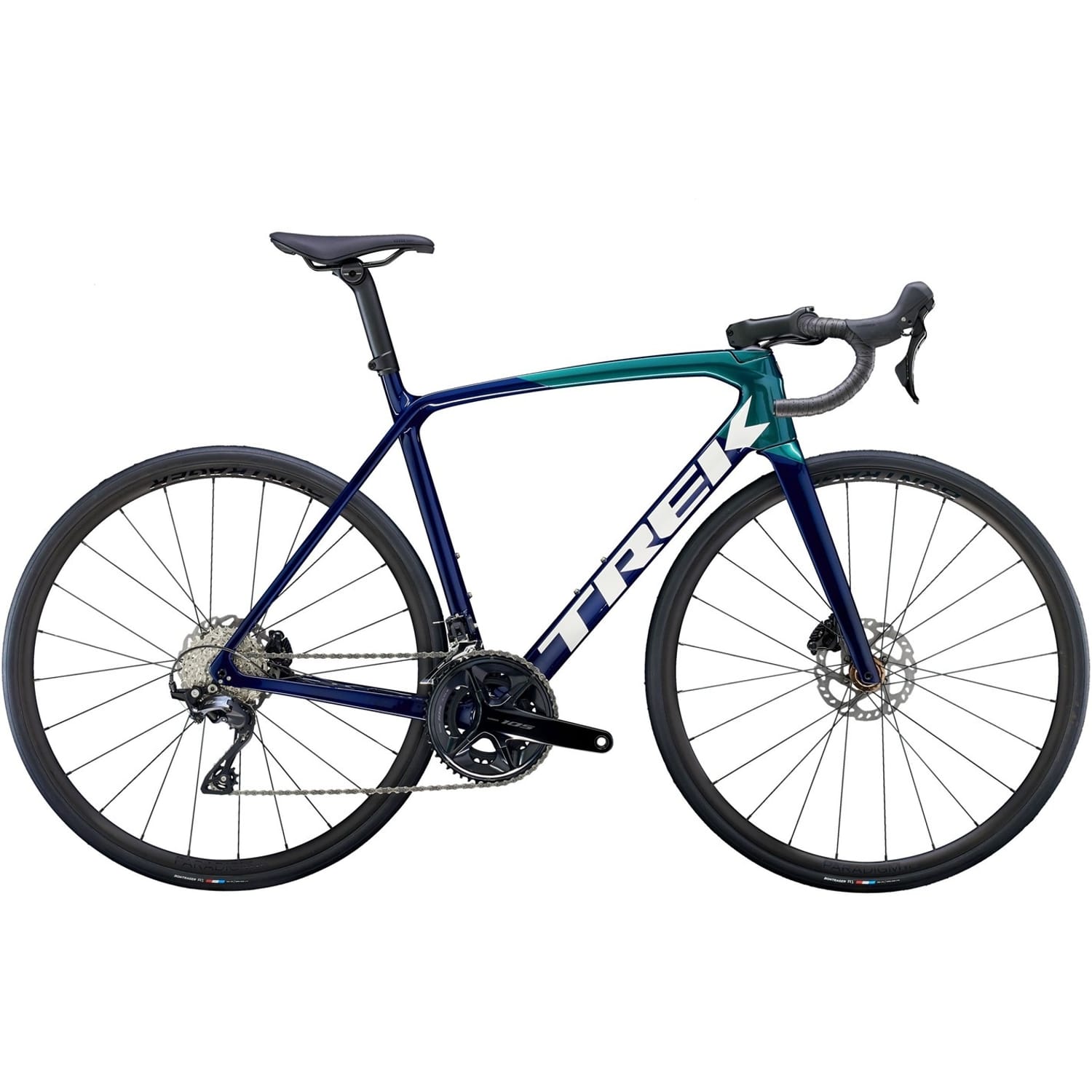

Trek Emonda Sl 5 2024 Road Bike in Blue

£1,999.00 £2,850.00 Save £851.00 (30%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

56cm

Product Description
Product Code: FR2906201
About the Emonda SL 5
The Emonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics, a Shimano 105 drivetrain and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats and speedy descents.

-
The tech you get - A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a full Shimano 105 12-speed drivetrain, powerful flat-mount Shimano hydraulic disc brakes, internal cable routing for clean looks and Bontrager Paradigm SL Tubeless Ready wheels.

-

-
Key Features
- You get a lot for your money: The Emonda SL 5 Disc is light, fast, fun to ride, equipped with a Shimano 105 drivetrain and ready to race
- Aerodynamic tube shaping makes this Emonda ready to roll wicked fast on flats and climbs alike
- It makes the perfect high-value upgrade from an aluminium road bike
- Hydraulic disc brakes give you stopping power and control in any weather, on any road
- Like every Emonda, it's light and fast – and it's backed by Trek's lifetime warranty
-

-
Specifications
Frameset
- Frame: Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
- Fork: Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
-
Wheels
- Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Tyres: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
-
Drivetrain
- Crankset: Shimano 105 R7100, 50/34
- Shifters: Shimano 105 R7120, 12-speed
- Front Derailleur: Shimano 105 R7100, braze-on, down swing
- Rear Derailleur: Shimano 105 R7100, 36T max cog
- Chain: Shimano SLX M7100, 12-speed
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Bottom Bracket: Praxis, T47 threaded, internal bearing
-
Components
- Handlebar: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
- Grips: Bontrager Supertack Perf tape
- Brakes: Shimano 105 hydraulic disc
- Saddle: Verse Short Comp, steel rails
- Seatpost: Bontrager alloy seat mast cap, 10 mm offset
-

-
Emonda Sizing
50cm 52cm 54cm 56cm 58cm 60cm
Rider Height (cm) 158 - 163 163 - 168 168 - 174 174 - 180 180 - 185 185 - 190
Rider Height (in) 5'2 - 5'4 5'4 - 5'6 5'6 - 5'9 5'9 - 5'11 5'11 - 6'1 6'1 - 6'3

	50cm	52cm	54cm	56cm	58cm	60cm
Rider Height (cm)	158 - 163	163 - 168	168 - 174	174 - 180	180 - 185	185 - 190
Rider Height (in)	5'2 - 5'4	5'4 - 5'6	5'6 - 5'9	5'9 - 5'11	5'11 - 6'1	6'1 - 6'3
