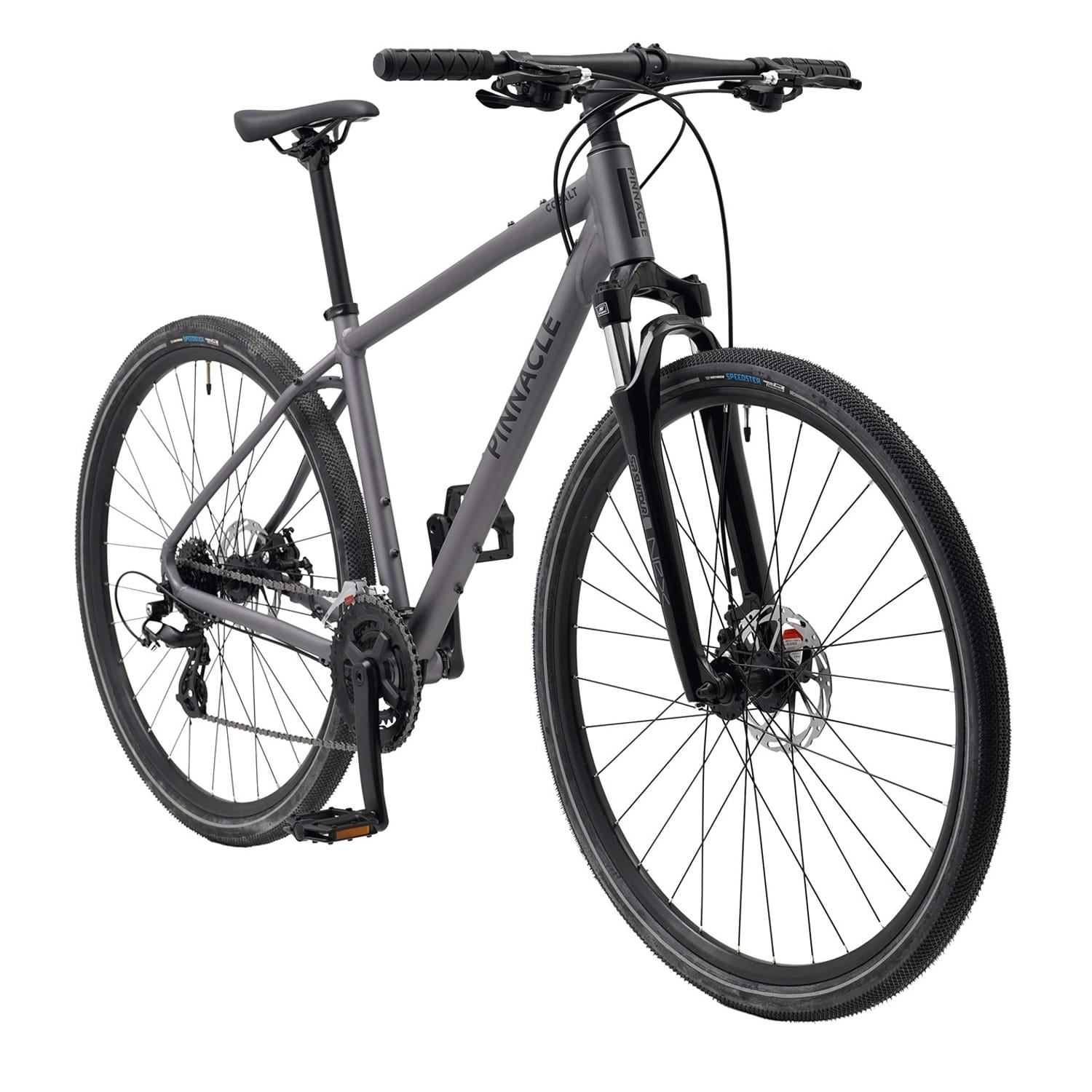

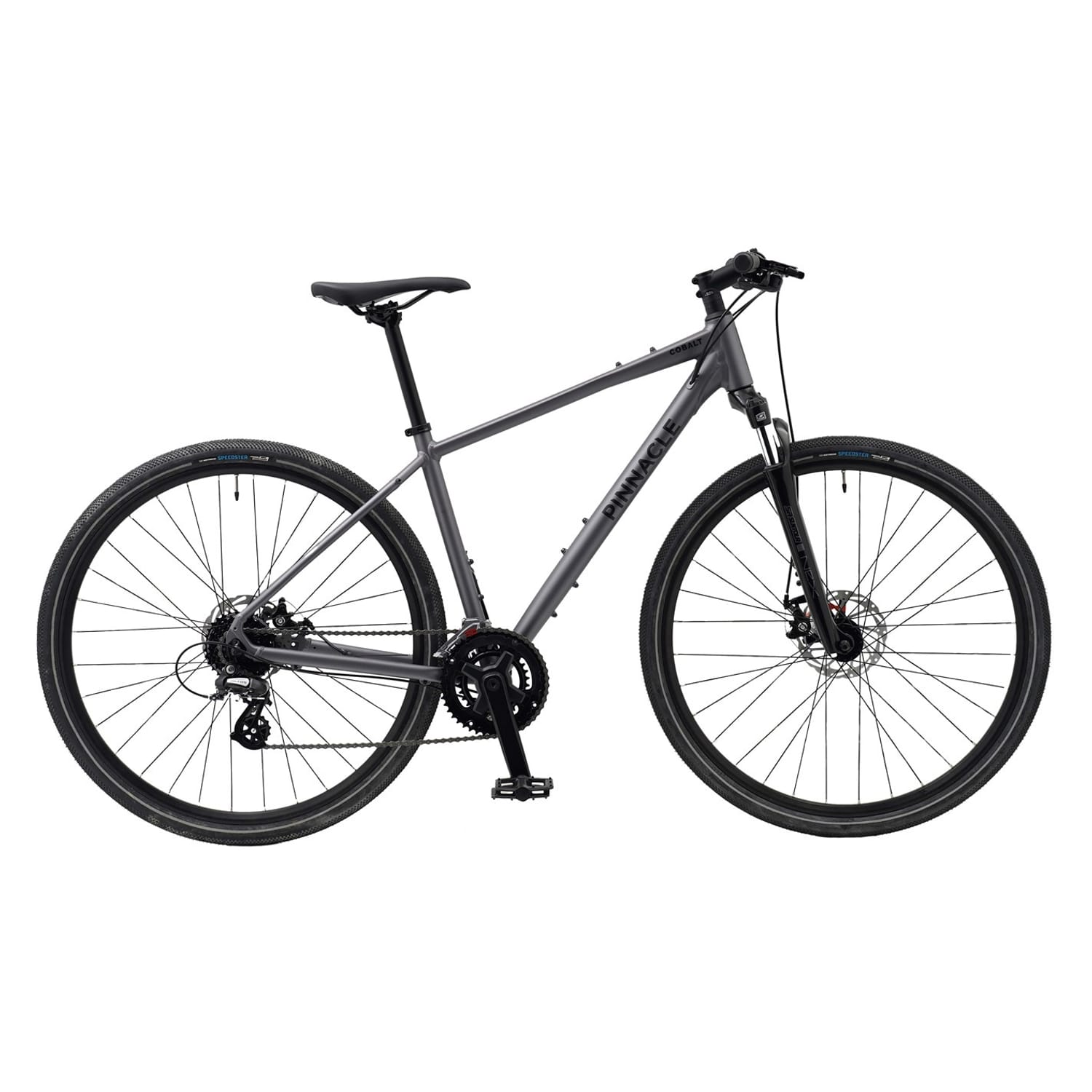

Pinnacle Lithium in Black

£349.00 £499.00 Save £150.00 (30%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

S M L XL

Product Description
Product Code: FR3139734
The Lithium is made for everyday life, nipping round town, the daily commute, or the pub run in the evening. The Lithium is perfectly suited for all the getting from A to B in everyday life. It is also great for getting out on paths/in parks for leisure or fitness riding.

-
For someone looking for a comfortable, simple, reliable bike for getting around in everyday life on 2 wheels. Or for the rider wanting an affordable leisure or fitness hybrid bike.

-

-

-
Key Features
- Lightweight alloy frame, with comfort focused riding position.
- Shimano Altus 2x8 speed drive train.
- Tektro disc brakes.
- Vee Speedster 700x40c tires with reflective sidewall.
-

-
Specifications
Frameset
- Frame: 6061 alloy, internal cable routing, mud guard mounts, rack mounts.
- Fork: Steel fork, mud guard mounts, QR.
- Rear Shock: N/A
-
Wheels
- Rims: 700c alloy double wall, presta valve.
- Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
- Tyres: Vee tire Speedster, 700x40c, wire bead, reflective side wall.
-
Drivetrain
- Crankset: Prowheel TB-CY10, 46x30, square taper.
- Shifters: Shimano Altus, M315, 2x8 speed, rapid fire.
- Rear Derailleur: Shimano Altus, M310-L, 8 speed.
- Front Derailleur: Shimano Altus, M315.
- Chain: KMC, Z-83
- Cassette: Shimano Altus, HG31, 8 speed, 11-34t.
- Bottom Bracket: Alloy, sealed cartridge bearing, square taper, 73x122.5mm.
-
Components
- Handlebar: Alloy, 31.8mm, 6 deg, flat, 660mm.
- Stem: Alloy, 31.8mm, 6 deg, S: 75mm, M-XL:90mm.
- Grips: Velo, black, end plug.
- Brakes: Tektro MD-M280, mechanical disc, 160mm rotor.
- Saddle: Black, steel rail.
- Seatpost: Alloy, 27.2, 350mm, 15mm offset.
-

-
Lithium
S M L XL
Rider Height (cm) 155- 165 165 - 175 175 - 186 186 - 197
Inside Leg (cm) 72 - 78 77 - 83 82 - 88 87 - 93
-

	S	M	L	XL
Rider Height (cm)	155- 165	165 - 175	175 - 186	186 - 197
Inside Leg (cm)	72 - 78	77 - 83	82 - 88	87 - 93
