Cerium Flat Bar

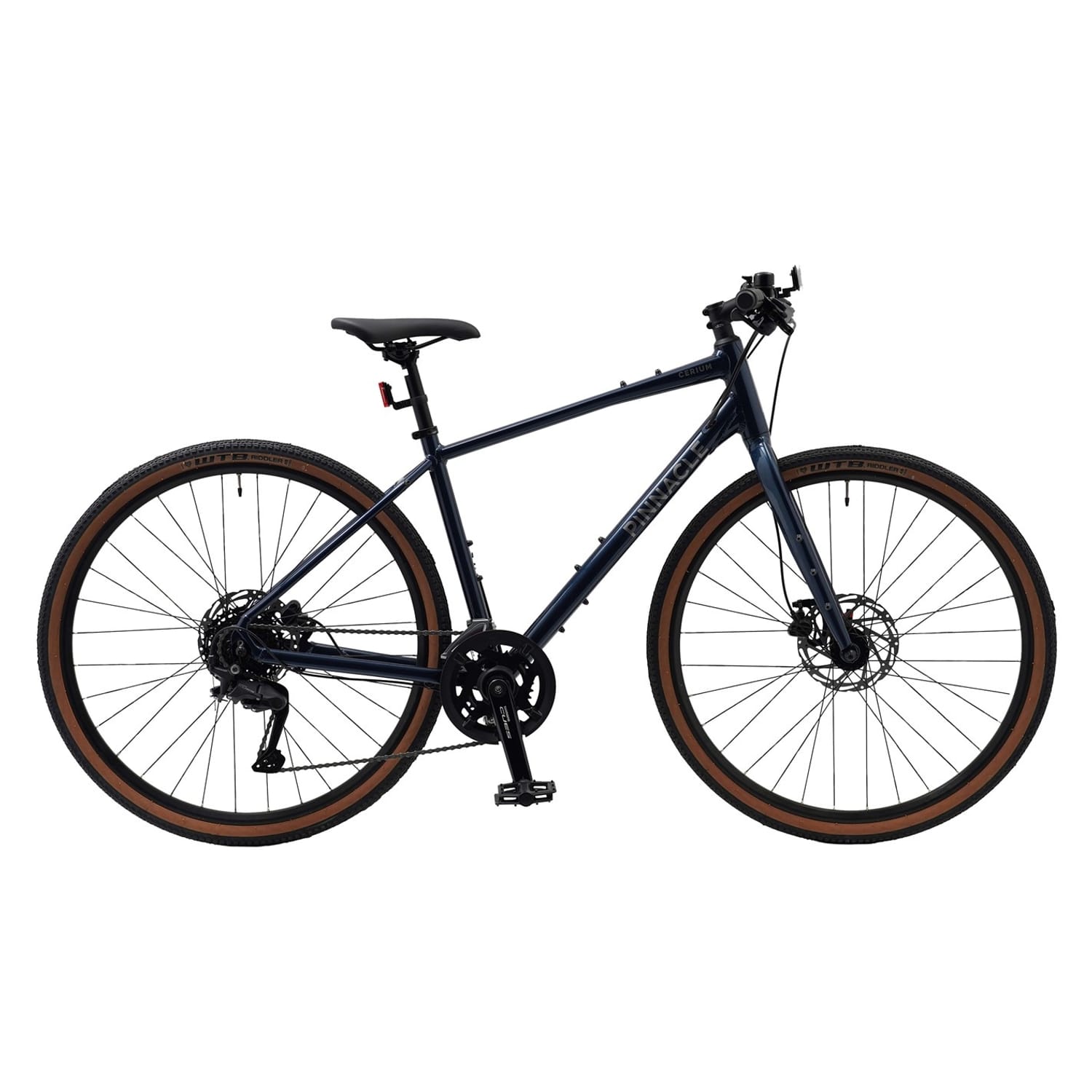

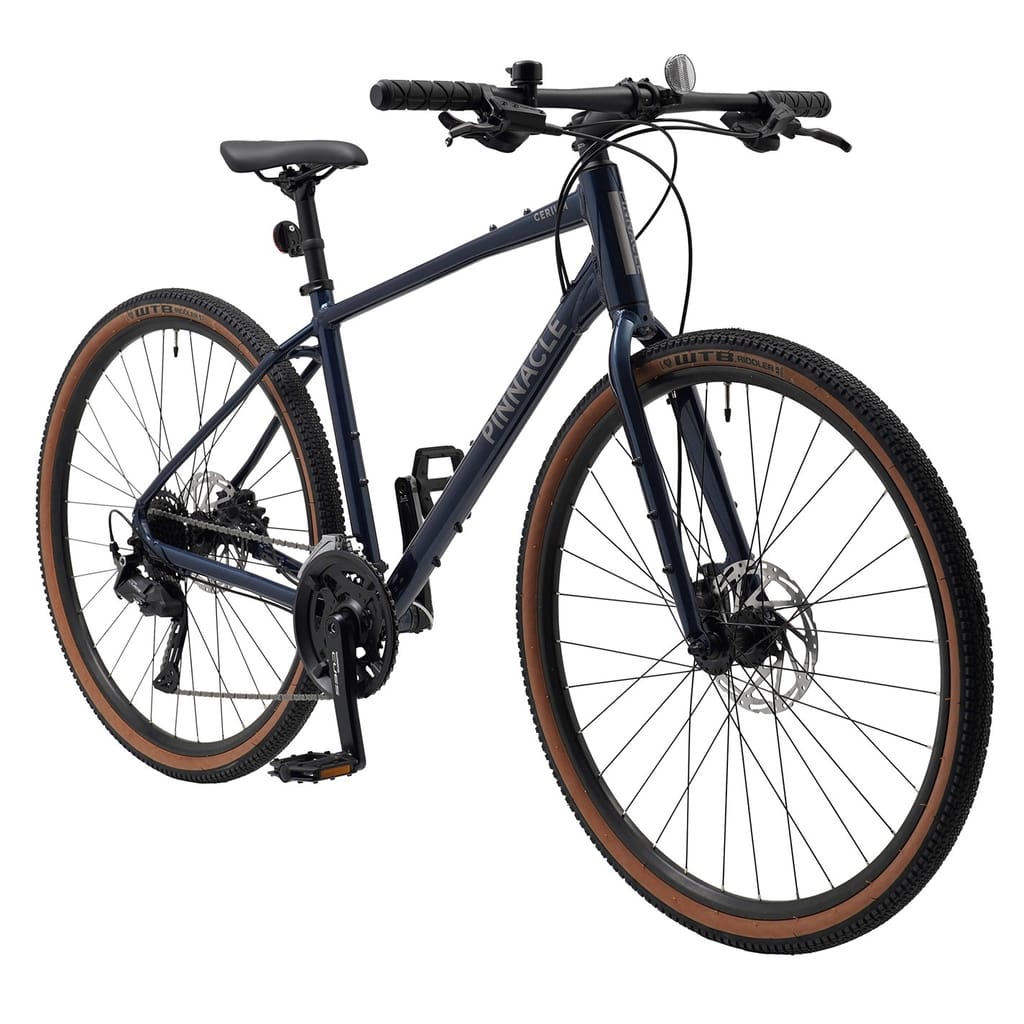

Pinnacle Cerium Flat Bar in Black

£449.00 £649.00 Save £200.00 (31%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

S M L XL

Product Description
Product Code: FR3139736
Mixed terrain commute, flat bar gravel riding, path and road mixed leisure and fitness riding. All of the above? The Cerium flat-bar has you covered. It is equal parts hybrid bike with go-anywhere big tires, and a flat bar adventure-gravel bike. You choose how you want to ride it.

-
For someone wanting all the versatility of an adventure-gravel bike but with flat (rather than drop) handle handlebars. For the ridier looking for the extra grip and bump absorbing comfort that comes from 700x45c tires, and the extra stopping power of hydraulic disc brakes

-

-

-
Key Features
- 6061 Alloy frame with internal cable routing, mud guard and rack mounts.
- Shimano Cues 2x9 speed drivetrain.
- Tektro HD-M280 hydraulic disc brakes.
- WTB Riddler 700x45c tires.
-

-
Specifications
Frameset
- Frame: 6061 alloy, internal cable routing, mud guard mounts, rack mounts.
- Fork: Steel fork, mud guard mounts, QR.
- Rear Shock: N/A
-
Wheels
- Rims: 700c alloy double wall, presta valve.
- Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
- Tyres: WTB Riddler, 700x45c, tan wall, wire bead, 30tpi.
-
Drivetrain
- Crankset: Shimano Cues, 46x30.
- Shifters: Shimano Cues, 2x9 speed.
- Rear Derailleur: Shimano Cues, U3020, 9 speed, shadow.
- Front Derailleur: Shimano Cues, U4010.
- Chain: KMC, Eglide.
- Cassette: Shimano, LG300, 9 speed, 11-36t, 11-13-15-17-20-23-26-30-36t.
- Bottom Bracket: Shimano.
-
Components
- Handlebar: Alloy, 31.8mm, 6 deg, 720mm.
- Stem: Alloy, 31.8mm, 7deg, S: 60mm, M-XL: 90mm.
- Grips: Velo, black, 128mm, end plugs
- Brakes: Tektro, HD-M280, hydraulic disc, 180mm rotor, 6 bolt.
- Saddle: Black, steel rail.
- Seatpost: Alloy, 27.2 x 350mm, 15mm offset.
-

-
Cerium Flat Bar
S M L XL
Rider Height (cm) 155- 165 165 - 175 175 - 186 186 - 197
Inside Leg (cm) 72 - 78 77 - 83 82 - 88 87 - 93
-

	S	M	L	XL
Rider Height (cm)	155- 165	165 - 175	175 - 186	186 - 197
Inside Leg (cm)	72 - 78	77 - 83	82 - 88	87 - 93
