Home

Bikes

Neon

Pinnacle Neon in Black

€921.27

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

S M L XL

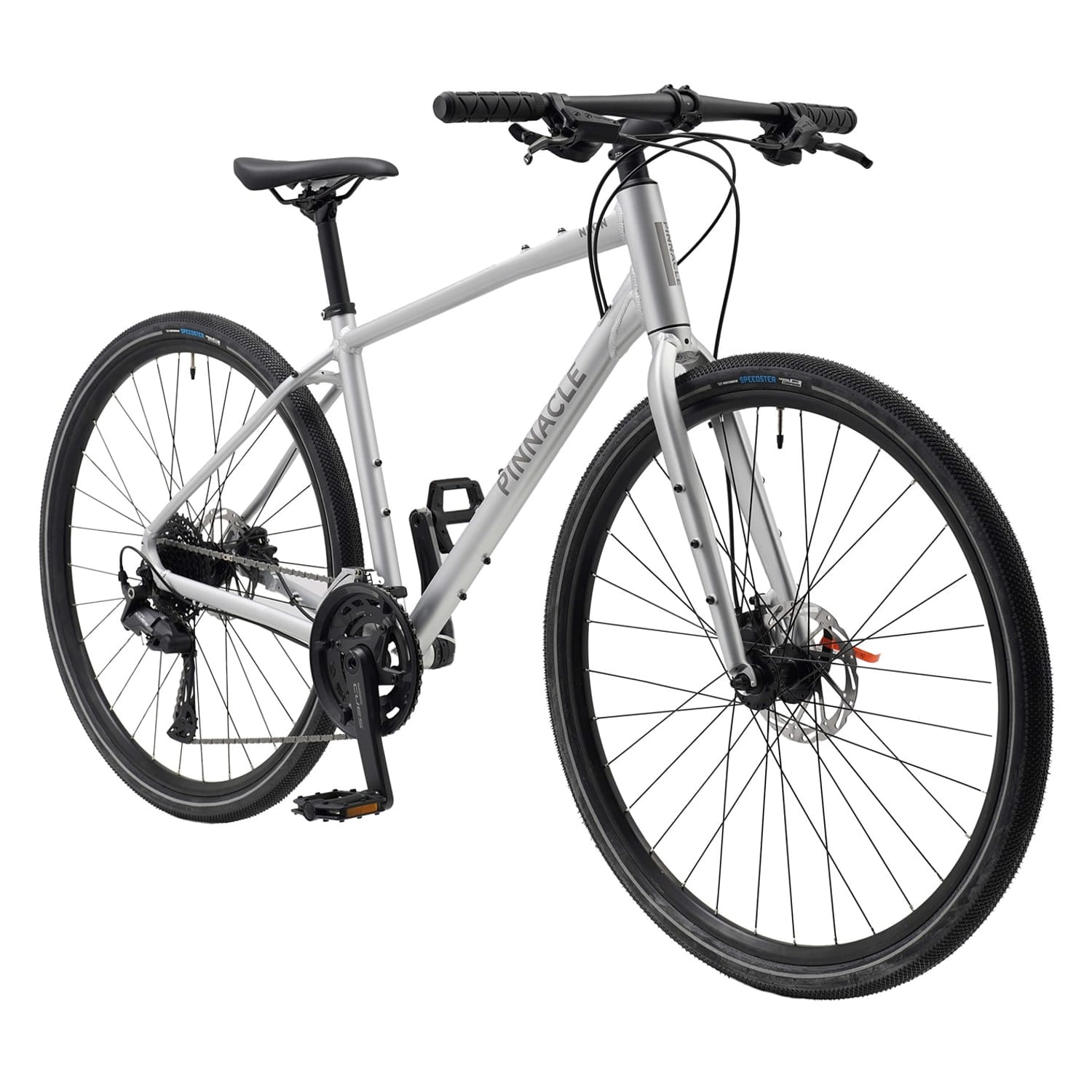

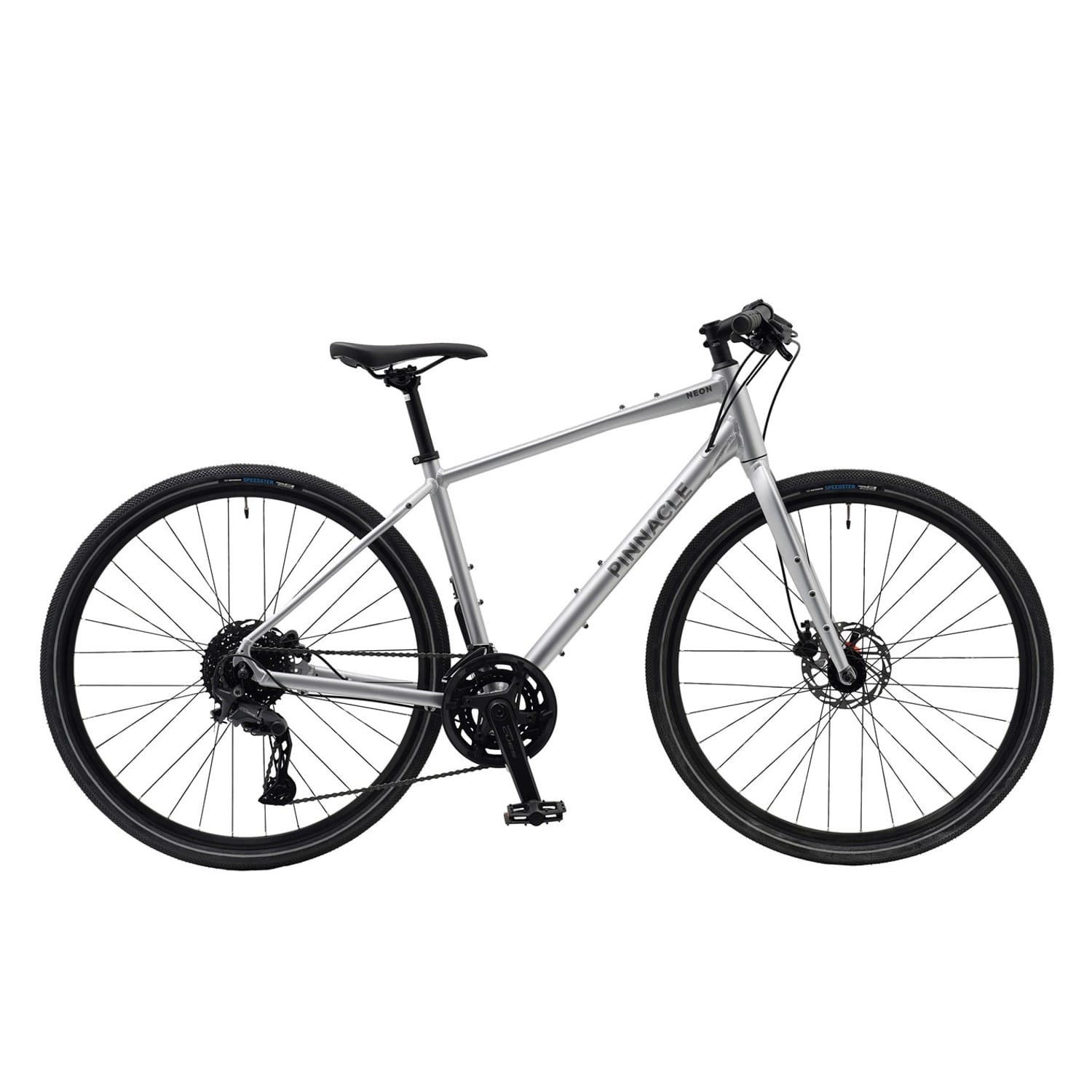

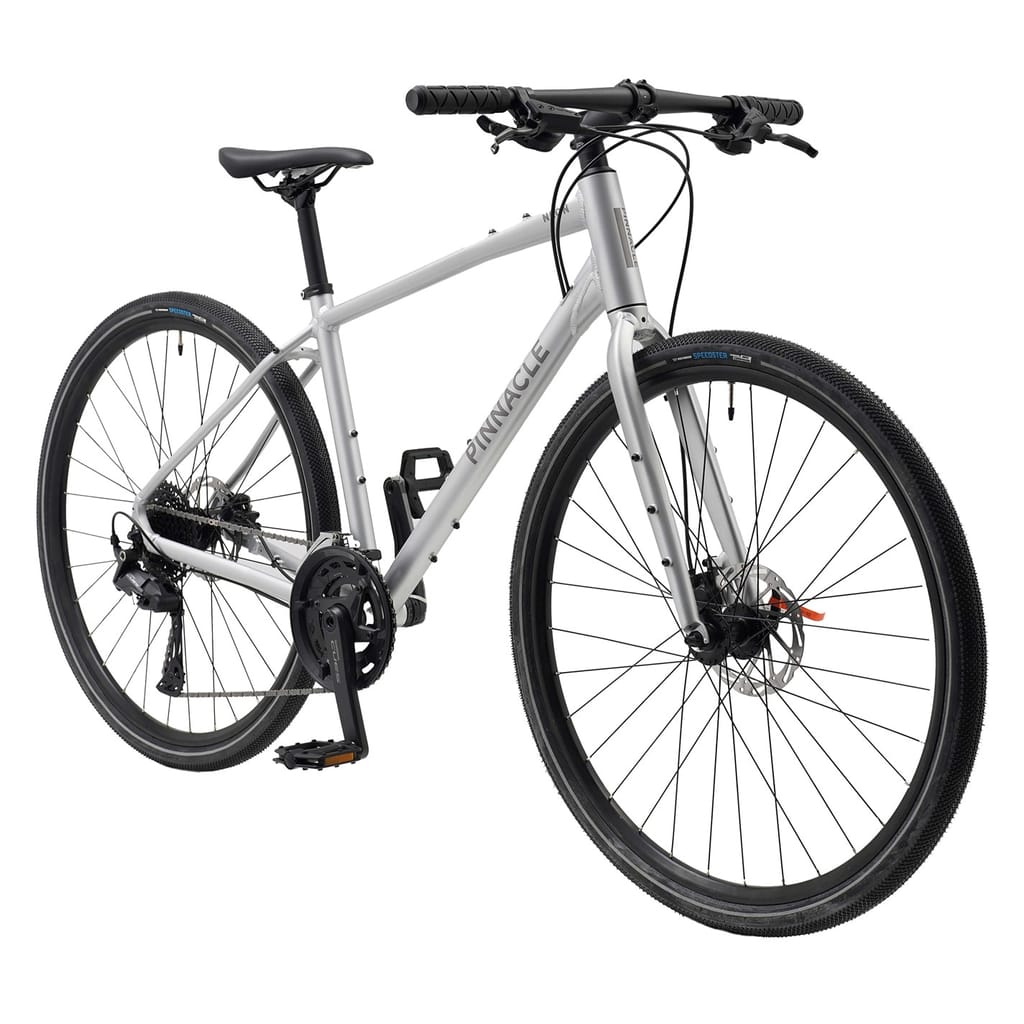

Product Description
Product Code: FR3139737
The Neon excels at the quick commute, fast around town, at home on the city streets. With Schwalbe reflective side wall and puncture guard tires, it is made for safe, reliable tarmac trips. 2x10 speed Shimano Cues gives you all the gears you need to tackle any hills and Tektro hydraulic gears to stop you when coming back down the other side.

-
For someone looking for a light weight, quick moving urban commute/ city bike. For the rider wanting a bigger range of gears, and more powerful brakes.

-

-
Key Features
- 6061 Alloy frame with internal cable routing, mud guard and rack mounts.
- Shimano Cues 2x10 speed drivetrain.
- Tektro HD-M280 hydraulic disc brakes.
- Schwalbe Spicer Plus 700x38c tires with reflective side wall stripe and puncture guard.
-

-
Specifications
Frameset
- Frame: 6061 alloy, internal cable routing, mud guard mounts, rack mounts.
- Fork: Steel fork, mud guard mounts, QR.
- Rear Shock: N/A
-
Wheels
- Rims: 700c alloy double wall, presta valve.
- Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR.
- Tyres: Schwalbe Spicer plus, 700x38c, wire bead, 50tpi, reflective, puncture guard.
-
Drivetrain
- Crankset: Shimano Cues, 46x30.
- Shifters: Shimano Cues, 2x10 speed.
- Rear Derailleur: Shimano Cues, U6020, 10 speed, shadow.
- Front Derailleur: Shimano Cues, U6010.
- Chain: KMC, Eglide.
- Cassette: Shimano, LG300, 10 speed, 11-39t, 11-13-15-17-20-23-26-30-34-39t.
- Bottom Bracket: Shimano.
-
Components
- Handlebar: Alloy, 31.8mm, 6 deg, 660mm.
- Stem: Alloy, 31.8mm, 7deg, S: 75mm, M-XL: 90mm.
- Grips: Velo, black, 128mm, end plugs
- Brakes: Tektro, HD-M280, hydraulic disc, 180mm rotor, 6 bolt
- Saddle: Black, steel rail.
- Seatpost: Alloy, 27.2 x 350mm, 15mm offset.
-

-
Neon
S M L XL
Rider Height (cm) 155- 165 165 - 175 175 - 186 186 - 197
Inside Leg (cm) 72 - 78 77 - 83 82 - 88 87 - 93
-

	S	M	L	XL
Rider Height (cm)	155- 165	165 - 175	175 - 186	186 - 197
Inside Leg (cm)	72 - 78	77 - 83	82 - 88	87 - 93
