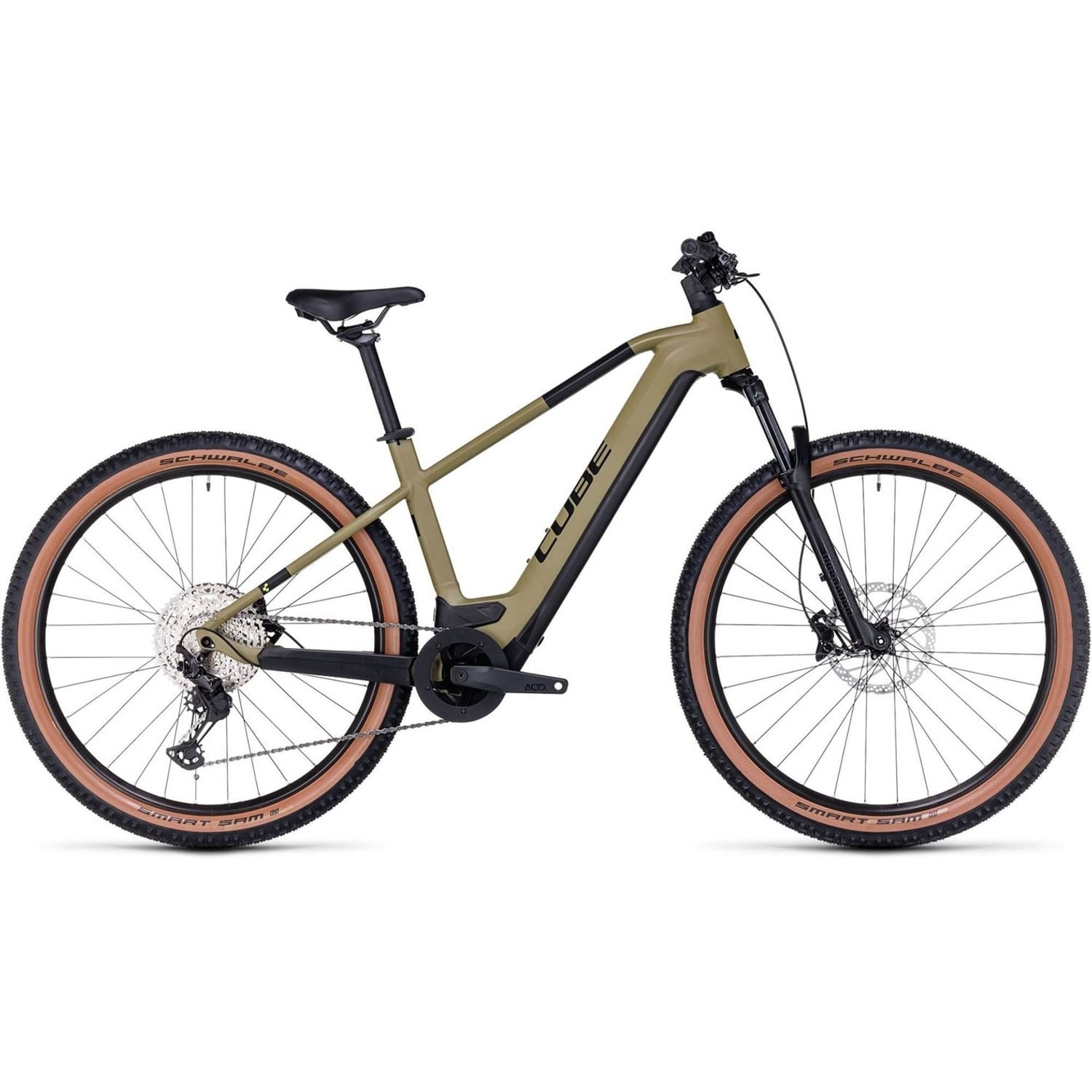

Cube Reaction Hybrid Race 750 2023 Electric Mountain Bike in Green

€3,934.77 €4,672.77 Save €738.00 (16%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

Product Description
Product Code: FR3250705
With its high-capacity Bosch PowerTube battery, fourth-generation Bosch CX power and the slick shifting and wide range of Shimano's 1x12 XT gears, the Reaction Hybrid Race has what you need to broaden your horizons and take your riding to the next level. Powerful four-piston Shimano hydraulic disc brakes work with 2.6in Schwalbe tyres to deliver epic stopping power, while a RockShox Judy Silver air suspension fork delivers 100mm of easy-to-adjust, bump-smoothing travel. With a frame style and size to suit every rider, it's time to get inspired and ride more.

Key Features
- High-capacity Bosch PowerTube battery
- Fourth-generation Bosch CX motor
- Shimano 1x12 XT drivetrain
- RockShox Judy Silver air suspension fork
- Powerful Shimano hydraulic disc brakes
Specifications

Frameset
- Frame: Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points

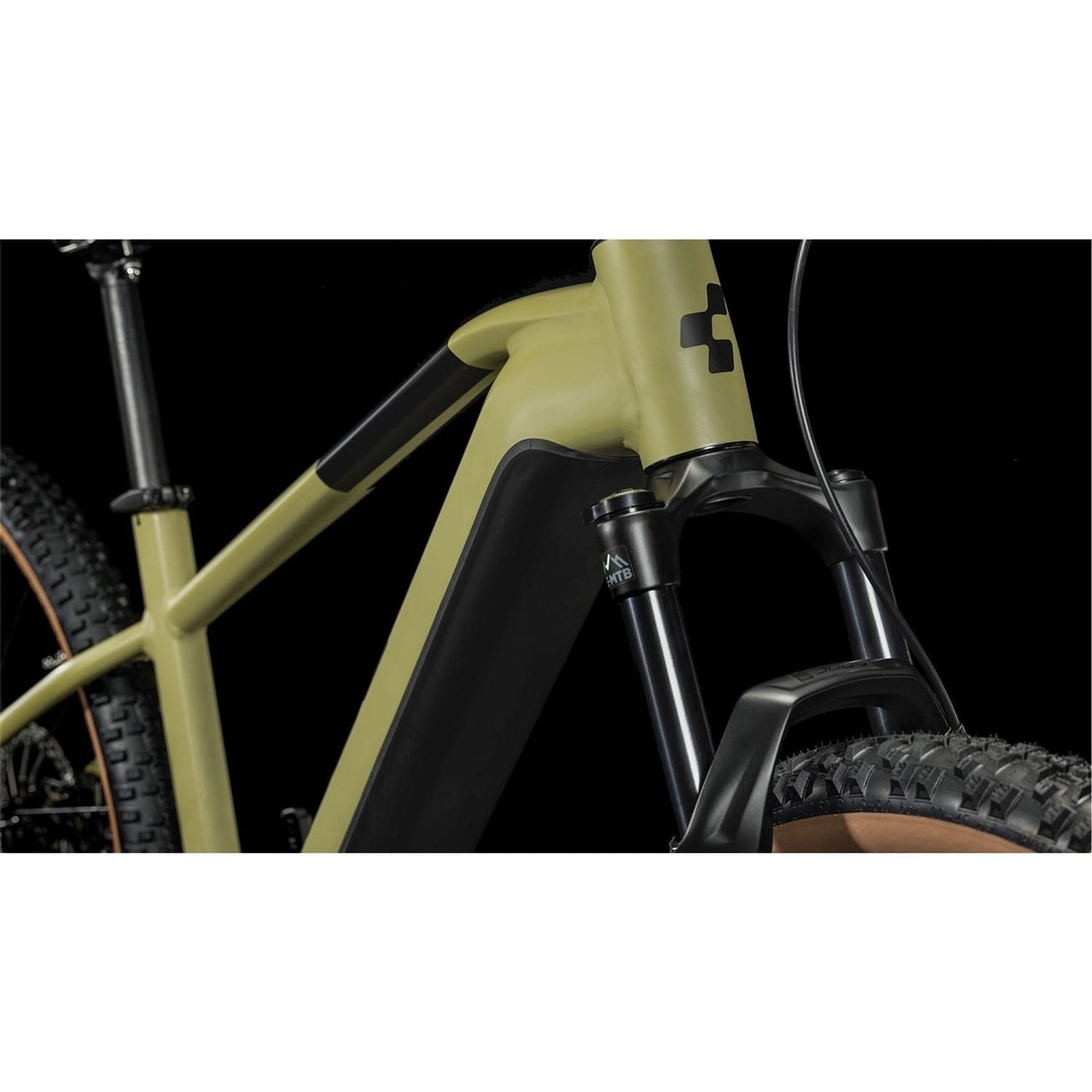

- Fork: RockShox Judy Silver TK Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout
Wheels
- Rims: CUBE EX30, 32H, Disc, Tubeless Ready
- Tyres: Schwalbe Smart Sam, Active, 2.6
Drivetrain

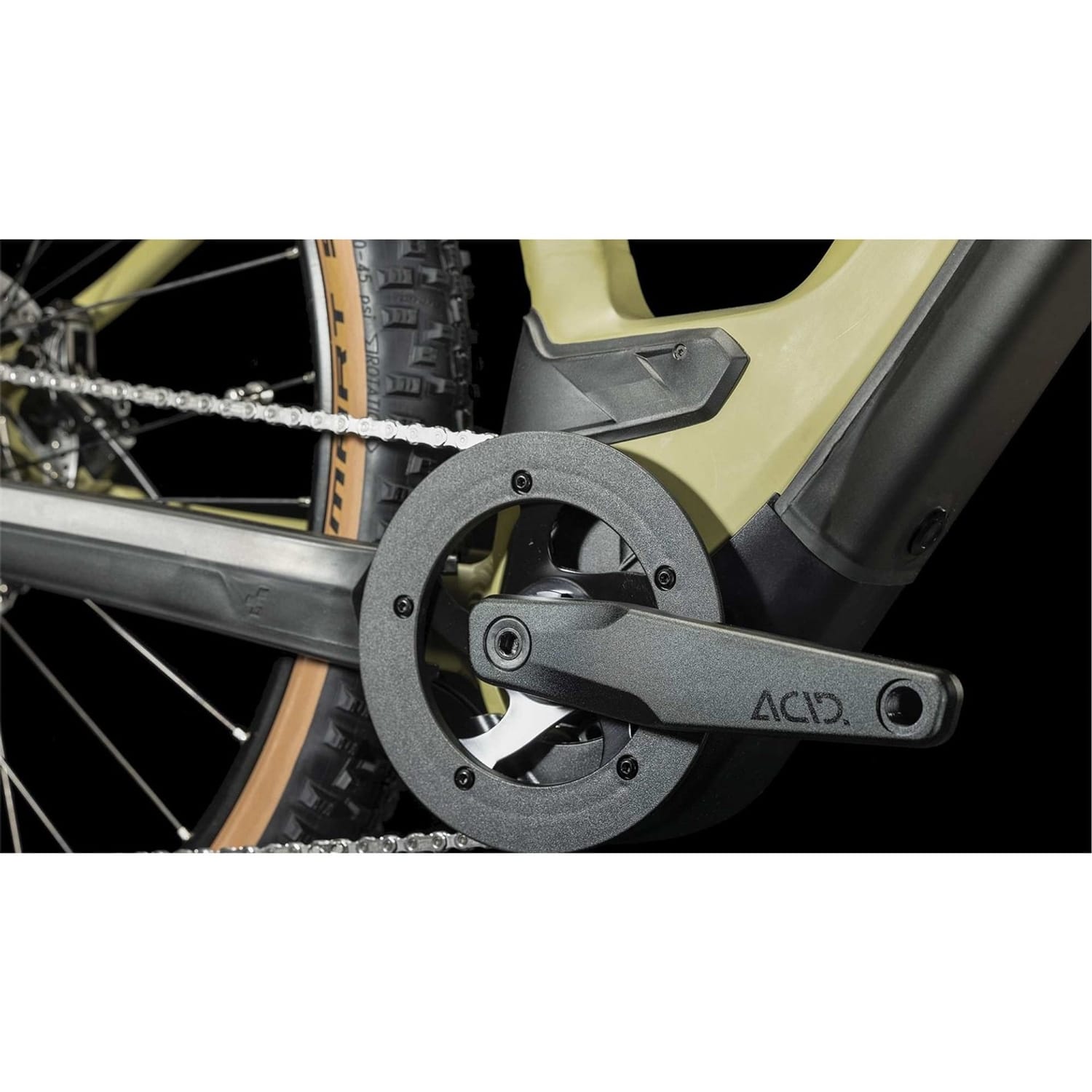

- Crankset: ACID E-Crank, 38T, 175mm
- Shifters: Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
- Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- Front Derailleur: Not applicable
- Chain: Shimano CN-M6100
- Cassette: Shimano Deore CS-M6100, 10-51T
Components
- Handlebar: CUBE Rise Trail Bar Pro, 740mm
- Stem: CUBE Performance Stem E-MTB, 31.8mm
- Grips: ACID React Pro
- Brakes: Shimano BR-MT420, Hydraulic Disc Brake (203/203)
- Saddle: Natural Fit Sequence

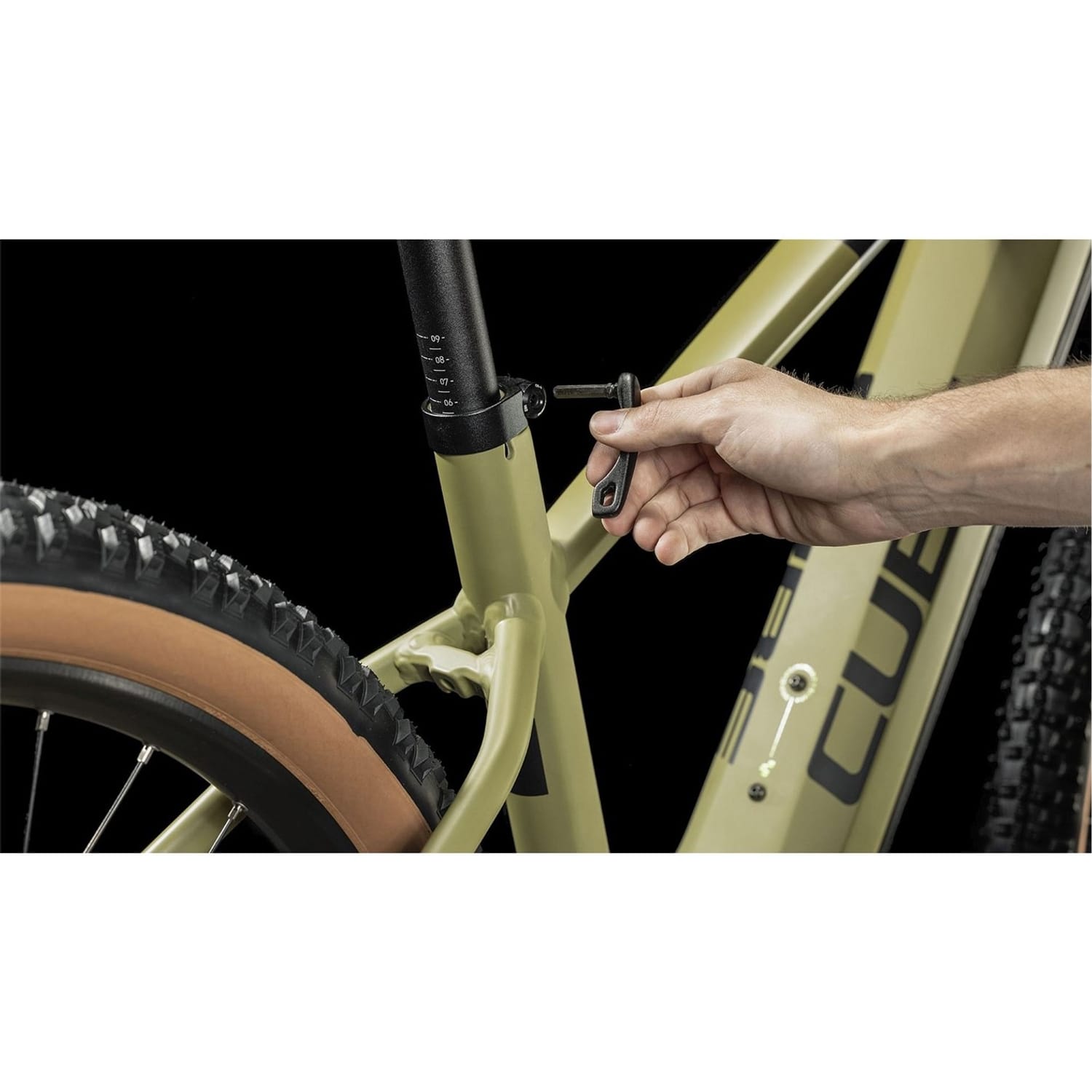

- Seatpost: CUBE Performance Post, 30.9mm
E-System
- Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Smart System
- Battery: Bosch PowerTube 750

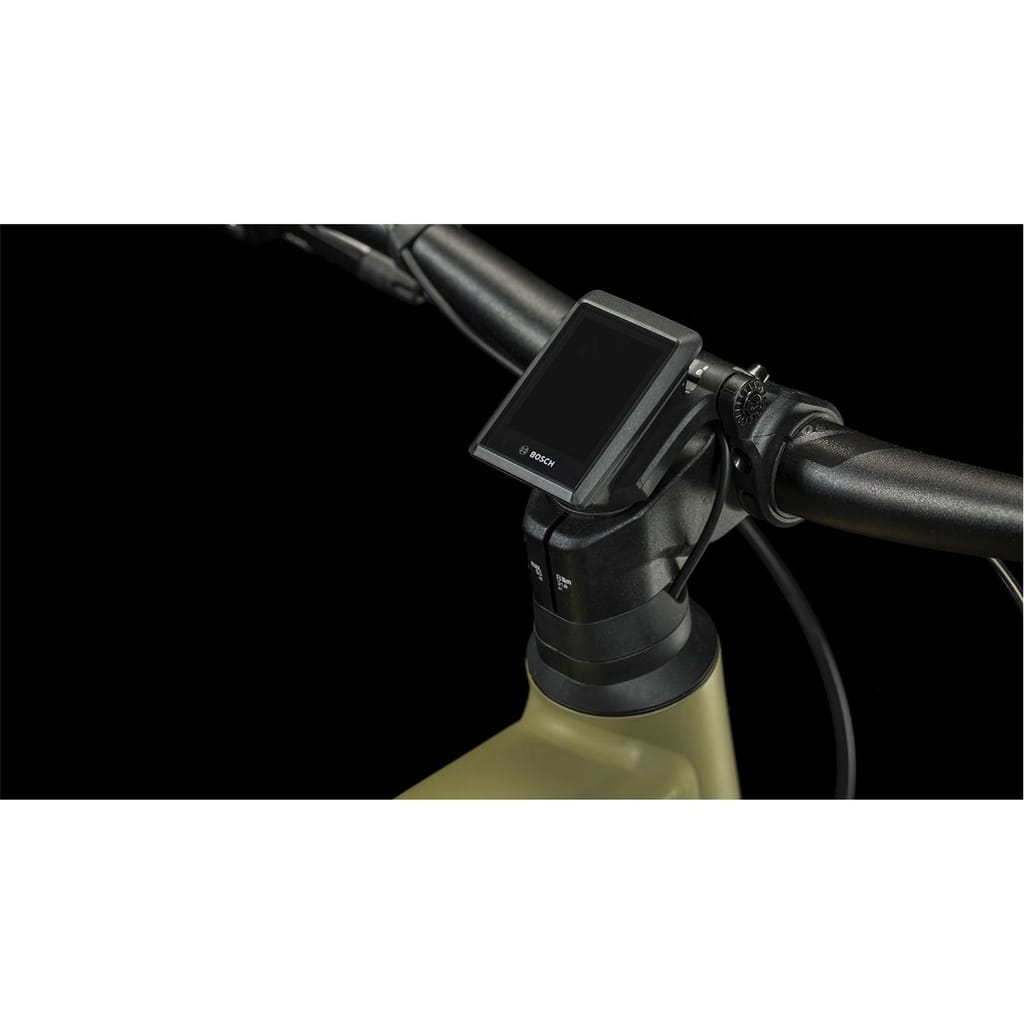

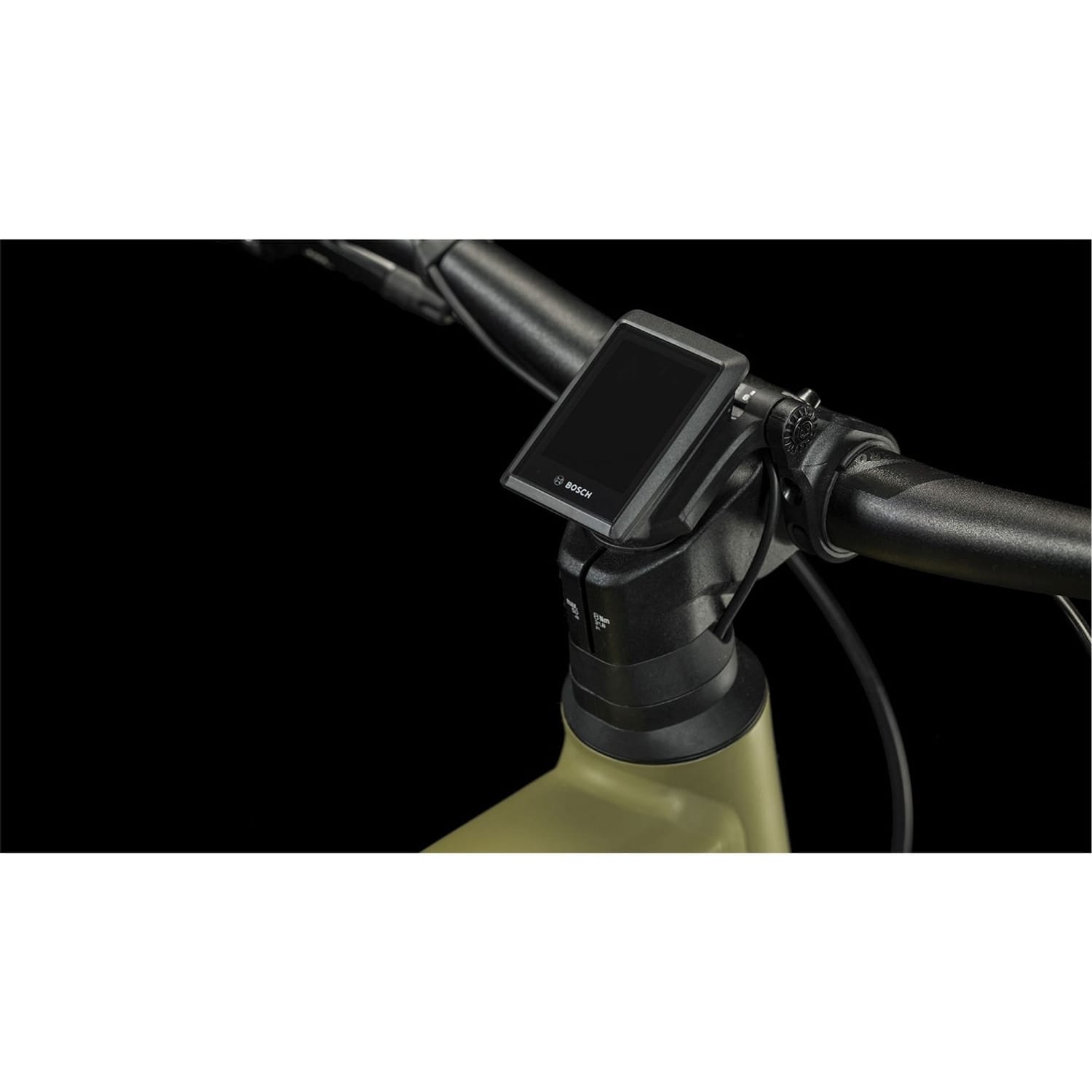

- Controller: Bosch Purion
Cube Reaction Sizing

XS S M L XL XXL
Rider Height 148-158cm 158-168cm 168-178cm 178-185cm 185-193cm 193-198cm
