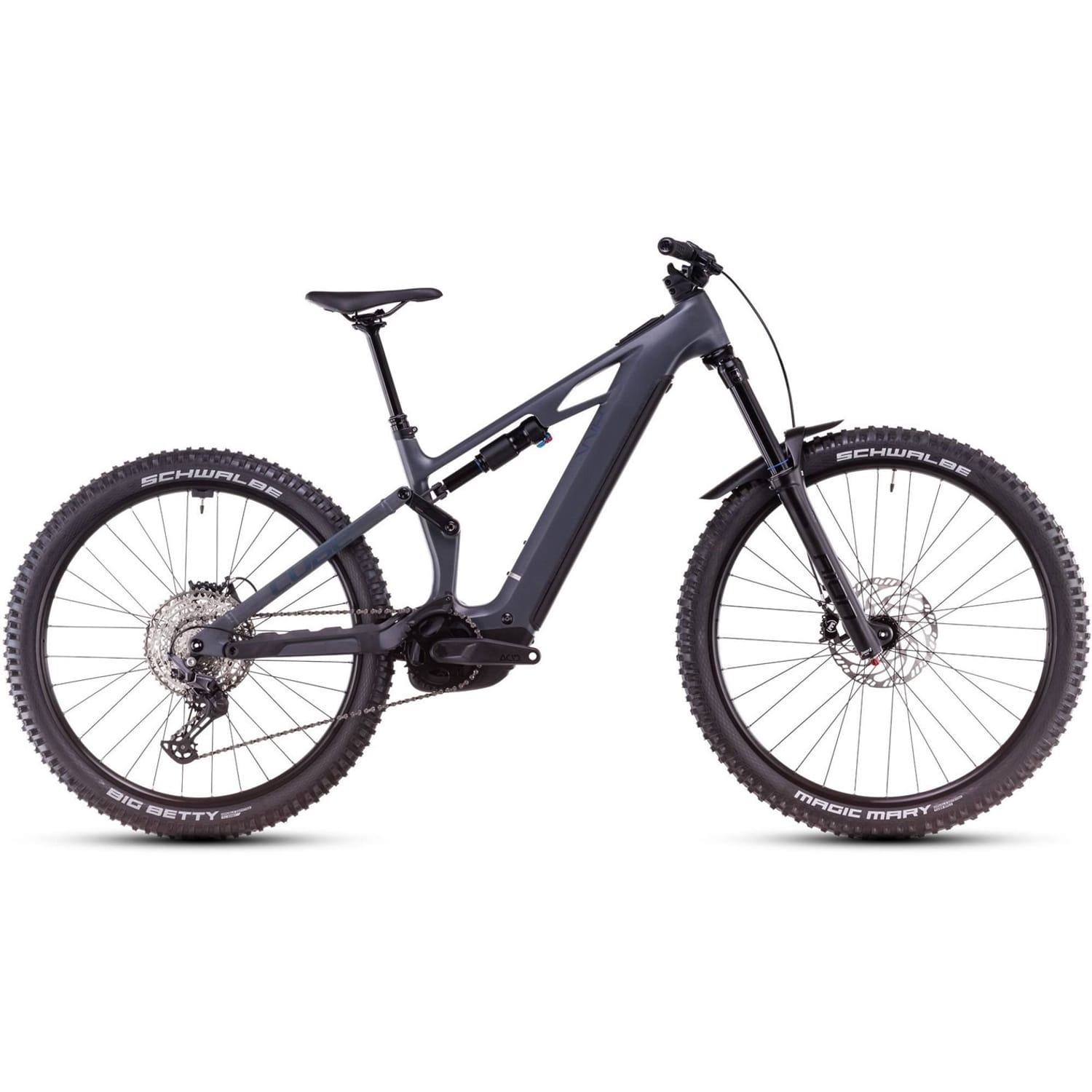

Cube Stereo Hybrid One77 Hpc Race 800 Electric Mountain Bike in Grey

£3,599.00 £3,999.00 Save £400.00 (10%)

Size View Size Guide

SIZE	CHEST (ins)	CHEST (cms)	WAIST (ins)	WAIST (cms)
XS	34 - 36	86 - 91	28 - 30	70 - 75
S	36 - 38	91 - 96	30 - 32	75 - 80
M	38 - 40	96 - 101	32 - 34	80 - 85
L	42 - 44	106 - 111	34 - 36	85 - 90
XL	44 - 48	111 - 121	36 - 38	90 - 95
XXL	50 - 52	127 - 132	38 - 40	95 - 100
XXXL	54 - 56	137 - 142	40 - 42	100 - 105

UK	US	Europe
6	7	39
6.5	7.5	40
7	8	41
7.5	8.5	41.5
8	9	42
8.5	9.5	42.5
9	10	43
9.5	10.5	43.5
10	11	44
10.5	11.5	45
11	12	46
11.5	12.5	46.5
12	13	47
12.5	13.5	47.5
13	14	48

SIZE	UK SIZE	BUST (ins)	WAIST (ins)	INSIDE LEG (ins)
6	XXS	30	24	27 -28
8	XS	32	26	28
10	S	33	28	28 - 29
12	M	35	30	29
14	L	37	32	29 -30
16	XL	39	34	30 - 31

UK	US	Europe
3	5.5	36
3.5	6	36.5
4	6.5	37
4.5	7	37.5
5	7.5	38
5.5	8	38.5
6	8.5	39
6.5	9	40
7	9.5	41
7.5	10	41.5
8	10.5	42
8.5	11	42.5
9	11.5	43
9.5	12	43.5
10	12.5	44

Order by age	Height	Chest	Waist	Inside leg	Collar circ	Size
yrs	cms	ins	ins	ins	ins
3/4	104	21	20.5	19	11
4/5	110	22	21	20	12	XS
5/6	116	23	22	21	12	XS
6/7	122	24	22.5	21.5	12.5	S
7/8	128	25	23	22	12.5	S
8/9	134	26	23.5	23	13	M
9/10	140	27	2	23.5	13	M
10/11	146	28	25	24.5	13.5	M
11/12	152	29	26	25	13.5	L
12/13	158	30	27	26	14	L
13/14	164	32	28	27	14.5	XL
14/15	170	34	29	28	15	XL

Order by age	Height	Chest	Waist	Inside leg
yrs	cms	ins	ins	ins
5	110	22	20.5	19.5
6	116	23	21	21
7	122	23.5	21.5	22
8	128	24.5	21.5	23.5
9	134	25.5	22.5	25
10	140	27	23	26.5
11	146	29	24	28
12	152	31	25	29
13	158	32	25.5	29.5
14	164	33.5	26.5	30.5
15	170	35	27	31.5
16	176	36.5	28	31.5

UK	US	Europe
2.5	3.5	35
3	4	36
3.5	4.5	36.5
4	5	37
4.5	6	37.5
5	6.5	38
5.5	6.5	38.5
6	7	39

M L

Product Description
Product Code: FR3262590
The Stereo Hybrid ONE77 HPC is engineered for all-day performance on demanding trails, featuring 170mm of travel front and rear and a mullet wheel setup—29” up front for rollover capability and 27.5” at the rear for agile handling.

-

-
Features
- Integrated Cable Routing delivers a sleek look and minimizes maintenance.
- Angle-adjustable headset lets you fine-tune the handling to match your riding style.
- The 800 Wh Bosch PowerTube battery is cleanly integrated into the carbon down tube, paired seamlessly with the powerful Bosch CX motor.
- A UDH (Universal Derailleur Hanger) on the aluminium rear triangle ensures long-term durability and compatibility.
- The direct mount chainguard keeps you moving confidently, even when the terrain turns rough.
-

-
Specifications
Frameset
- Frame:

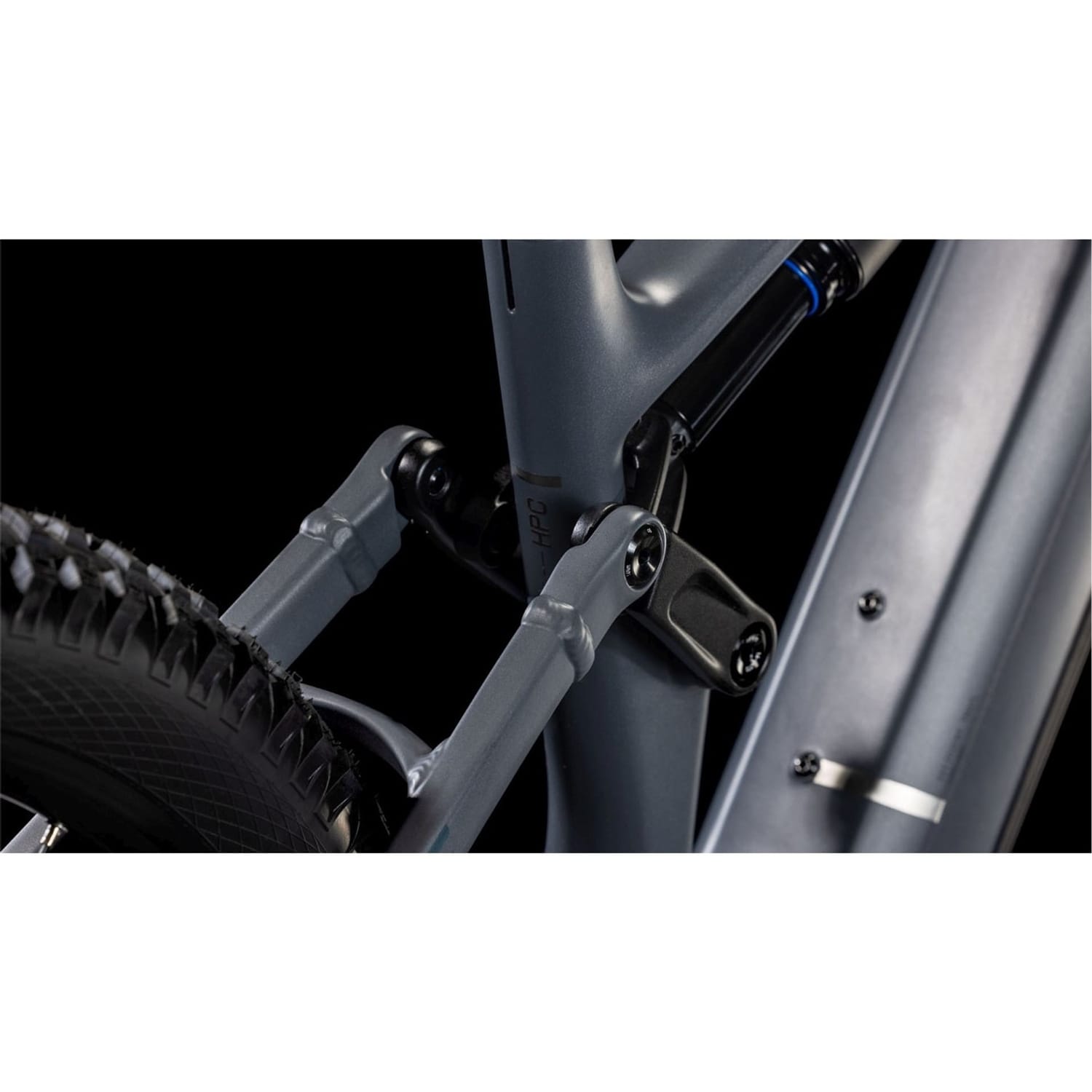

  - C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

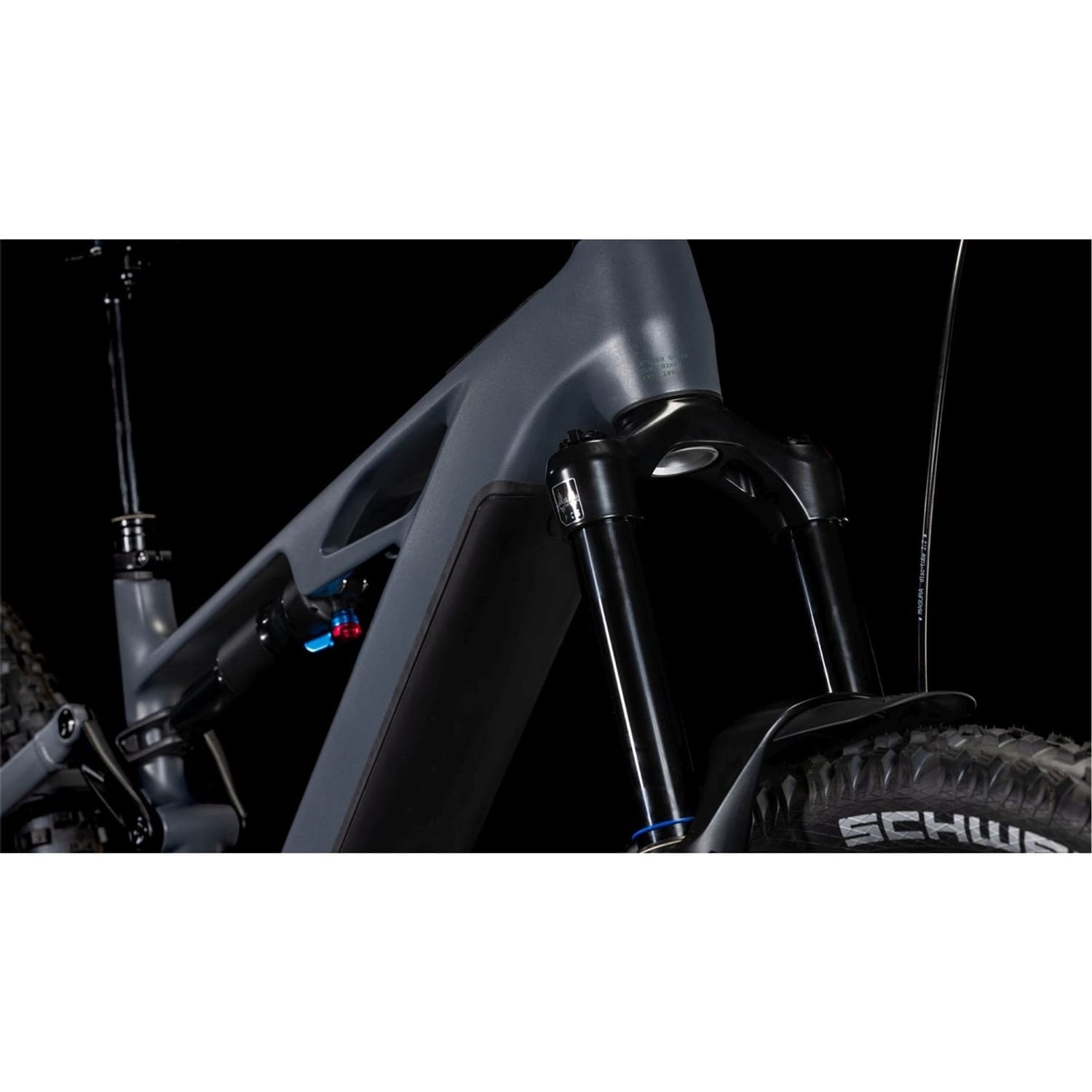

- Fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

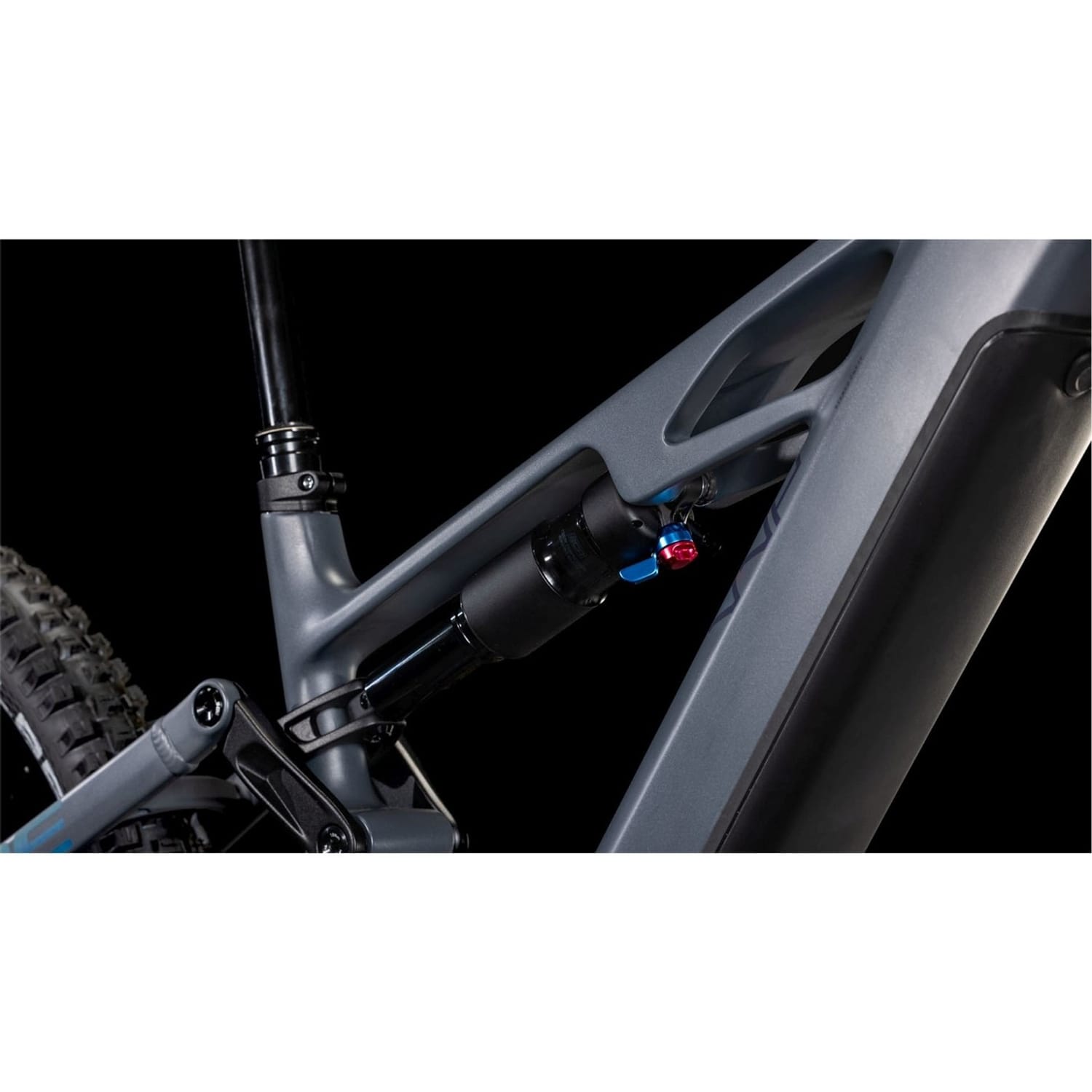

- Rear Shock: SR Suntour Edge EVO 2CR 230x65mm
-
Wheels
- Rims: CUBE EX30, 32H, Disc, Tubeless Ready
- Tyres: Schwalbe Magic Mary / Big Betty Performance, 2.4
-
Drivetrain
- Crankset: ACID MTB Hybrid Pro, 36T
- Shifters: Shimano Deore SL-M6100, Rapidfire-Plus
- Rear Derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
- Chain: KMC e12
- Cassette: Shimano Deore CS-M6100, 10-51T
-
Components
- Handlebar: CUBE Rise Trail Bar 35
- Stem: CUBE Performance Stem E-MTB 35, FPI-Link
- Grips: ACID Disrupt, Soft Compound
- Brakes: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- Saddle: ACID Venec Lite
- Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
-
E-System
- Motor: Bosch Performance Line CX 85Nm
- Battery: Bosch PowerTube 800

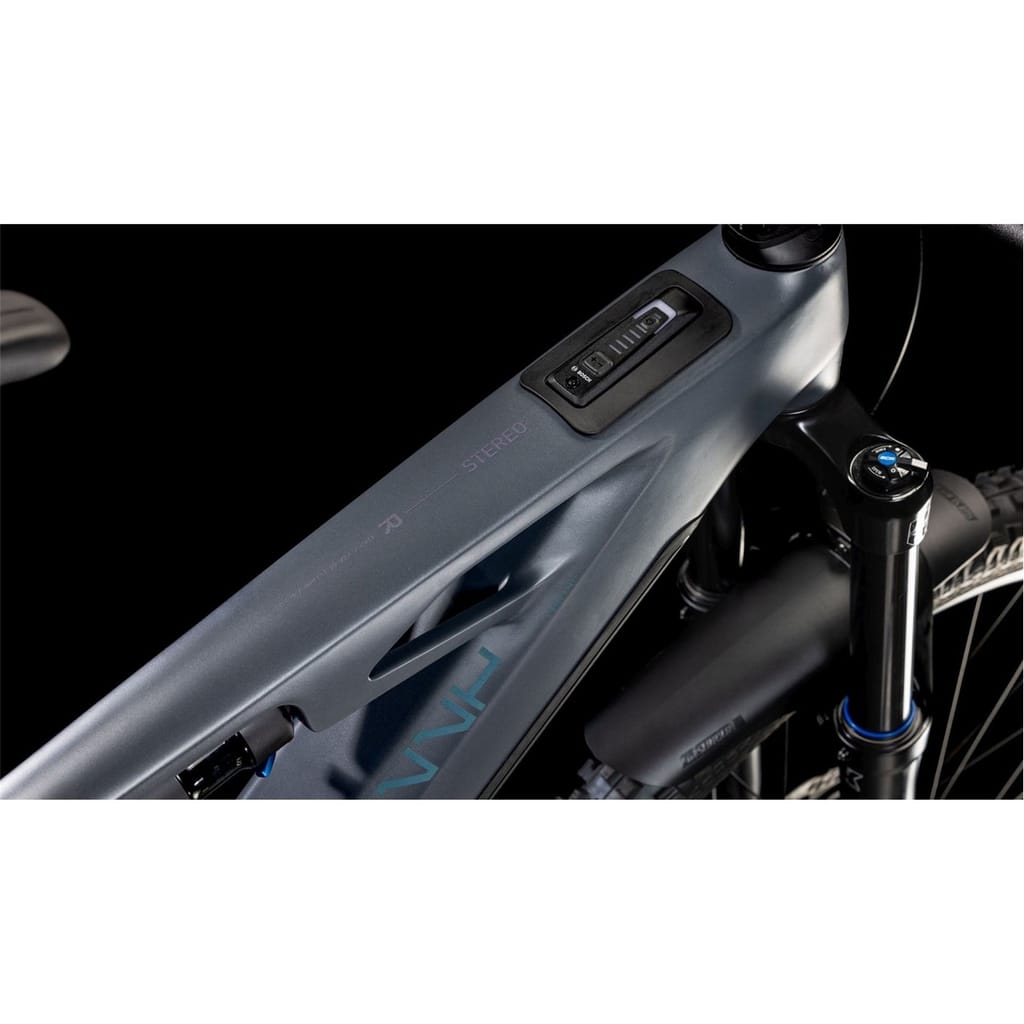

- Controller: Bosch System Control, Incl. Mini Remote
-
