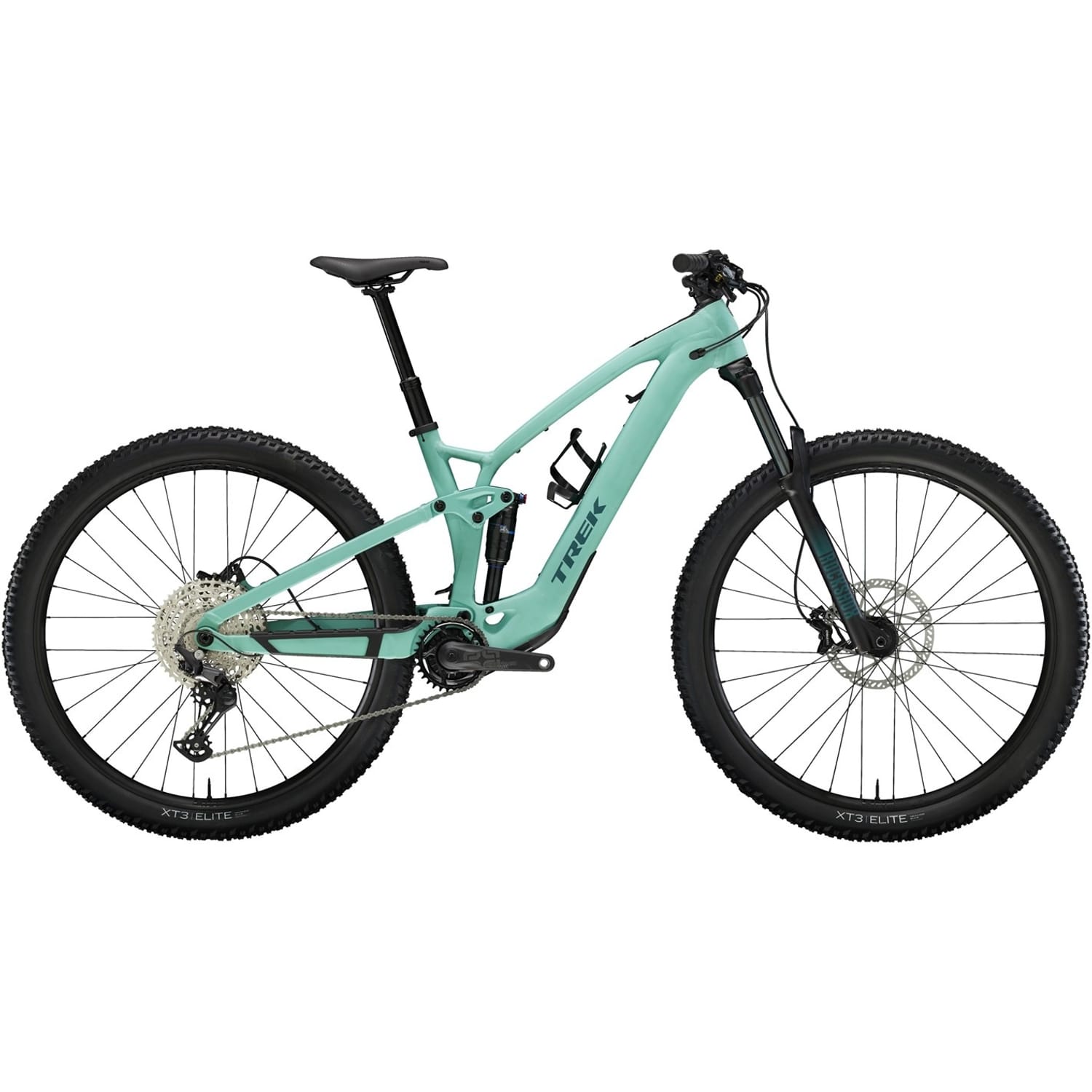

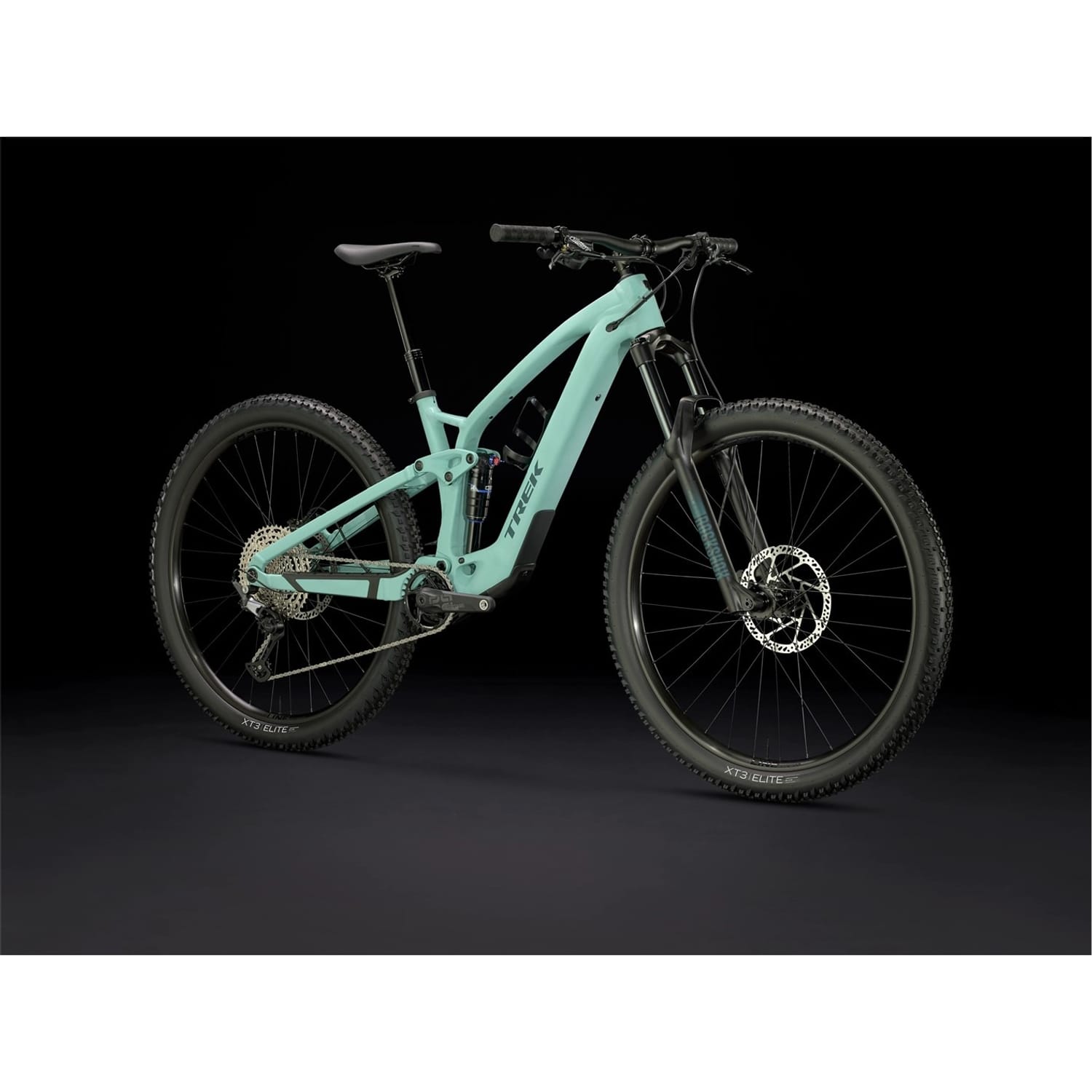

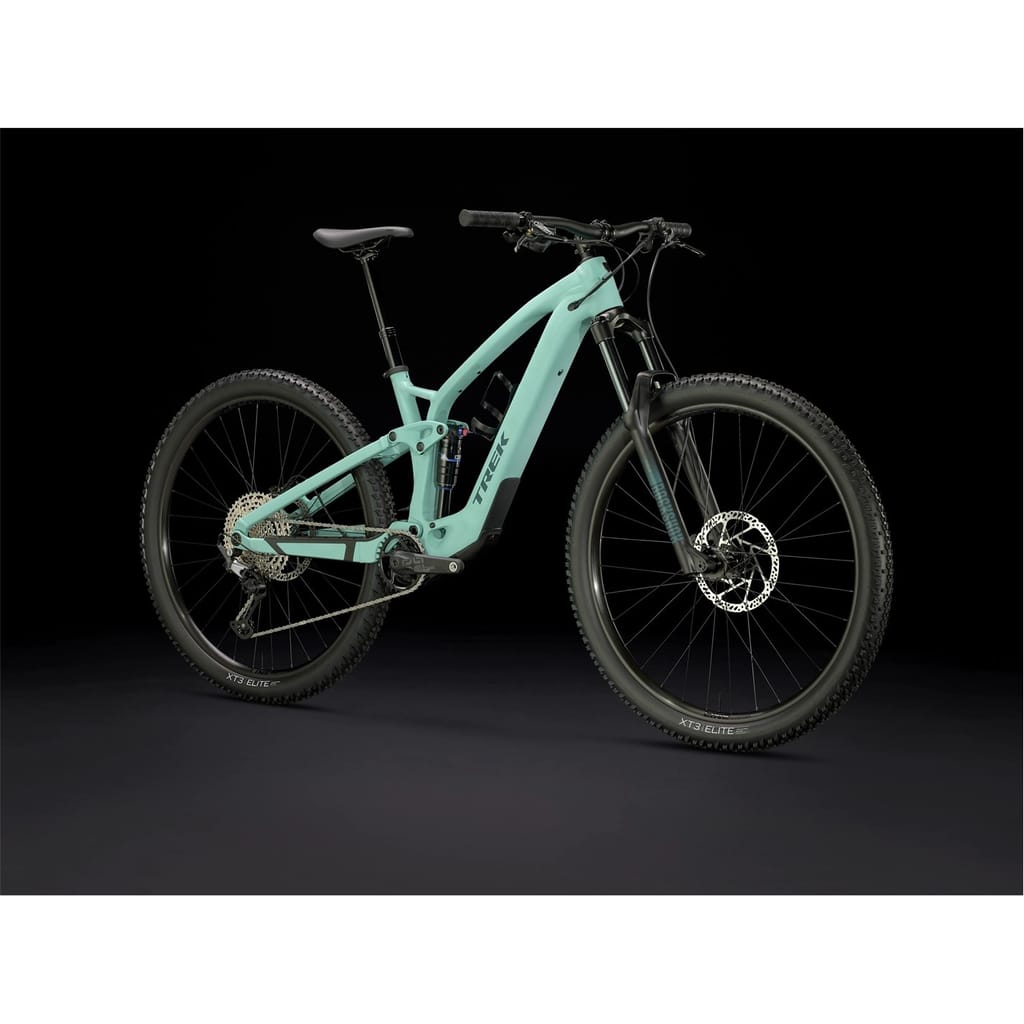

Trek Fuel Exe 5 xt in Blue

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

Features

• You get all the fun of a trail bike, plus a little extra push to help you crush climbs and save some juice for the descent
• Its tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel

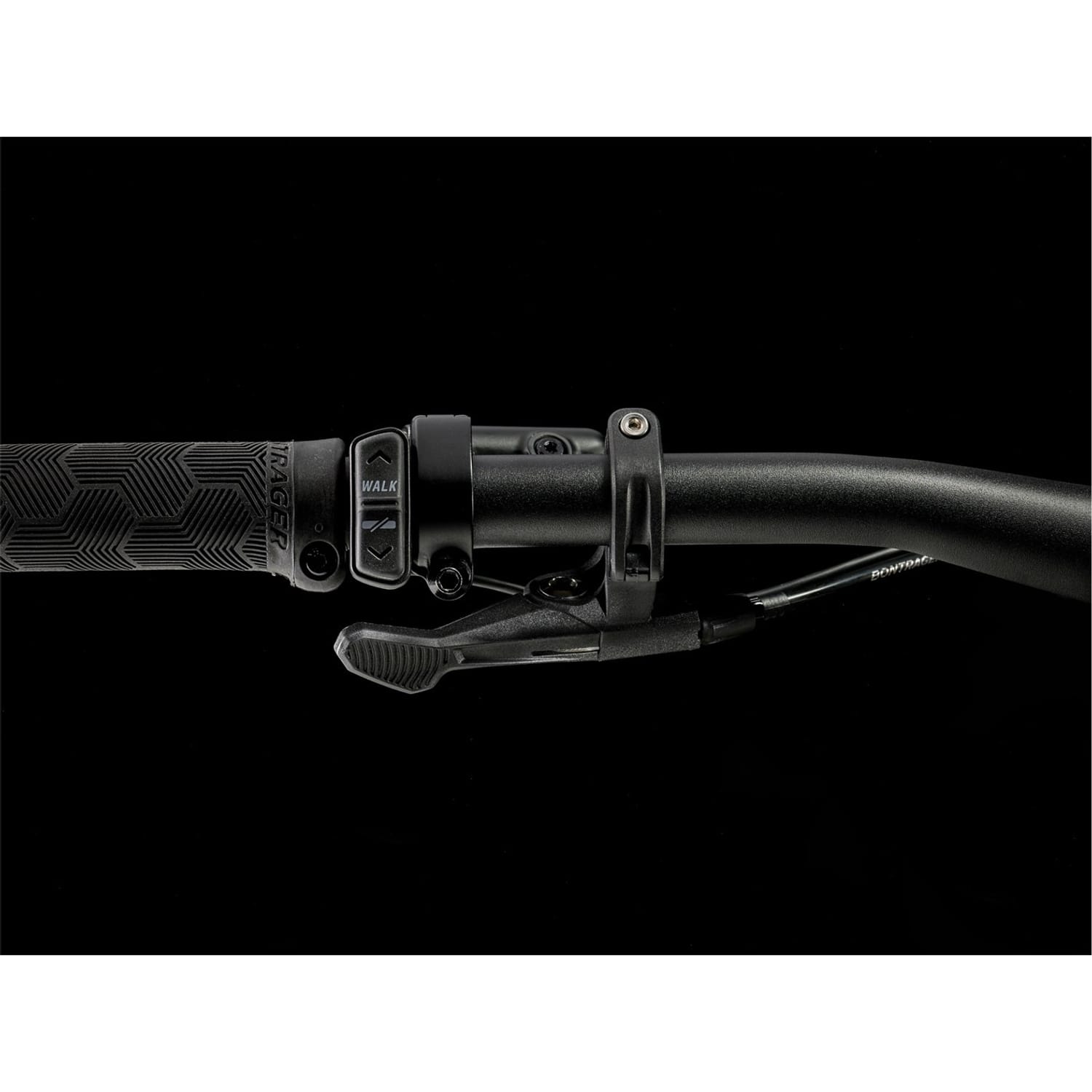

• The integrated display, charging port, and controls are simple to use, sleek and intuitive
• You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control
• If you want to ride further you can easily add a range extender that fits neatly in your bottle cage

Specifications

Frameset

• Frame: Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
• Fork: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel
• Rear Shock: X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm

Wheels

• Rims: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
• Tyres: Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40

Drivetrain

• Crankset: E*thirteen E*spec Plus, 165 mm length
• Shifters: Shimano Deore M6100, 12-speed
• Rear Derailleur: Shimano Deore M6100, long cage
• Chain: Shimano Deore M6100, 12-speed
• Cassette: Shimano Deore M6100, 10-51, 12-speed

Components

• Handlebar: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
• Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
• Grips: Bontrager XR Trail Comp, nylon lock-on

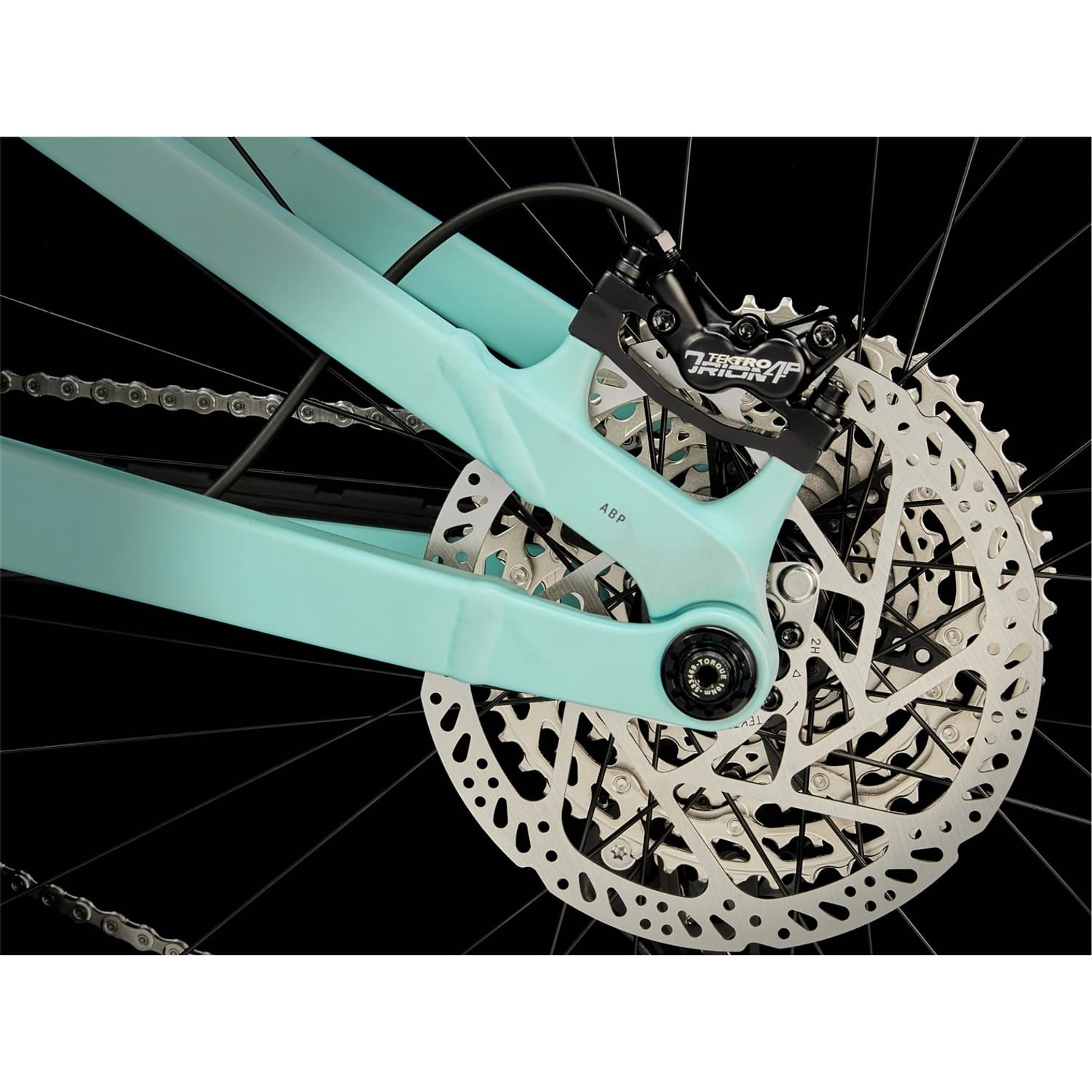

• Brakes: Tektro HD-M745 4-piston hydraulic disc
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSI-22PLQ, S:100 mm travel, M:150 mm travel, L,XL: 170 mm travel, internal routing, 34.9 mm

E-System

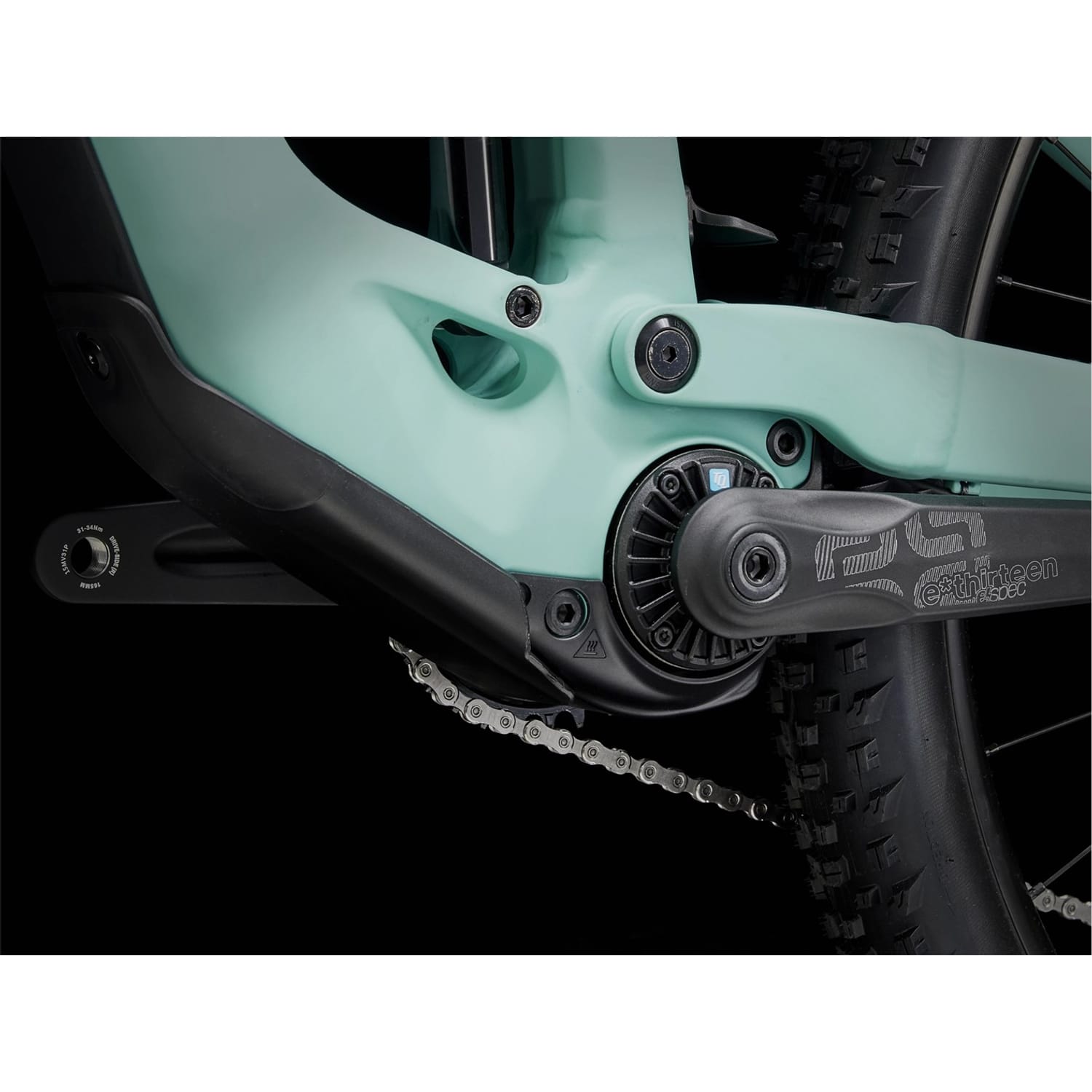

• Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
• Battery: TQ 360Wh

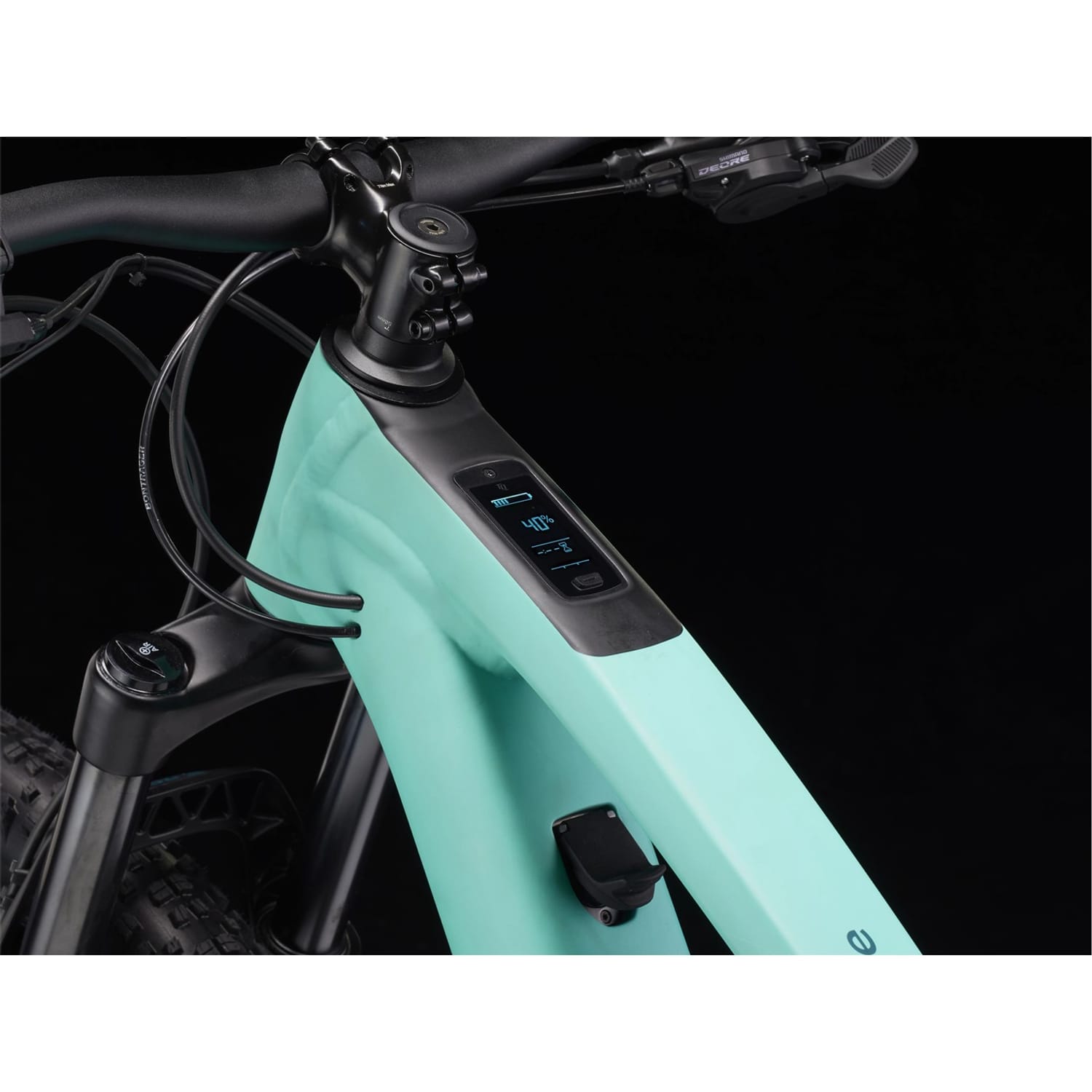

• Controller: TQ LED display with Bluetooth & ANT+ connectivity

Fuel eXe Sizing
